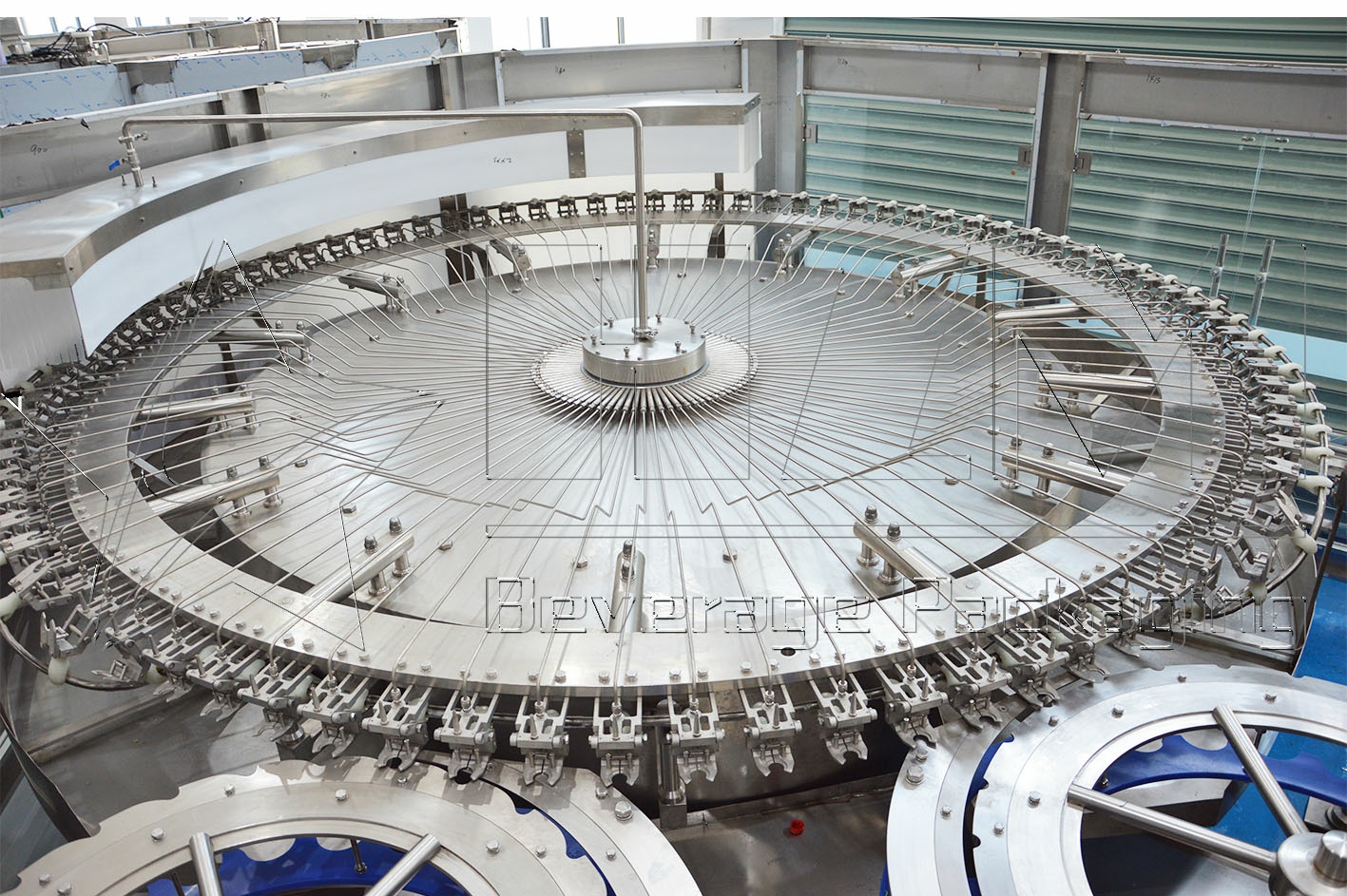

Commercial Sterility 36000 BPH Aseptic Cold Filling Equipment

Commercial Sterility 36000 BPH Aseptic Cold Filling Equipment

Material: Stainless Steel Certification: GB/T19001-2000
Type: Filling Machine Filling Temperature: 4~35℃
Capacity Range: 15000--36000B/H Model: GWJX06A / GWJX15A
Number Of Bottle Dumping Clip: 24 / 72 Number Of Bottle Rinsing Clip: 24 / 60
Number Of Filling Valve: 24 / 60 Number Of Capping Head: 8 / 15
Bottle Height (mm): 180-315 Outline Dimensions (mm): 7100x 2860x 3000 / 11900 X8500x 3200
Quality (Kg): 10000 / 25000 Remark: Split Type
High Light: 36000 BPH Aseptic Cold Filling Equipment, 15000 BPH Aseptic Cold Filling Equipment, 36000 BpH Sterility Cold Filling Equipment

Commercial Sterility 36000 BPH Aseptic Cold Filling Equipment



Packaging Materials More Thorough And Safer Aseptic Cold Filling Machine

PET bottled beverage aseptic cold filling machine

The aseptic cold filling production line adopts aseptic isolation technology to ensure the sterilization of filling materials, packaging environment and packaging containers. Sterilize bottles and caps with reliable sterilization methods to ensure the sterility of empty bottles and caps.

Use COP and SOP methods to clean and sterilize the internal and external surfaces of the equipment, and use sterile air to maintain a positive pressure in the filling environment to achieve a class 100 clean environment. The use of CIP and SIP methods to clean and sterilize the material pipeline ensures that the materials after UHT sterilization are not contaminated, and ensure that the final product meets the requirements of commercial sterility.

Specifications of Bottled Water Filling Machine

Model

Number of Bottle Dumping Clip

Number of Bottle Rinsing Clip

Number of Filling Valve

Number of Capping Head

Capacity (BPH)

Bottle Size

Outline Dimensions (mm)

Quality (Kg)

Remark

Diameter (mm)

Height (mm)

Volume (ml)

GWJX06A

24

24

24

8

2500(1.5L)

Φ60-Φ115

180-315

350-1500

7100x 2860x 3000

10000

Split Type

GWJX15A

72

60

60

15

24000(500ml)

Φ60-Φ96

180-315

350-1500

11900 x8500x 3200

25000

Split Type



Features

Our aseptic cold filling line is modularly constructed for great flexibility. It combines the dumping machine, rinser, filler and capper into one unit, and the part above the table-board is full closed by shielding can.
The adoption of magnetic constant torque capping head helps ensure capping quality.
Automatic control of CIP and SIP operations is realized.
The inside of of pipeline and valve in contact with material meets the related sanitation standard.



FAQ

Q: What are the Primary Products of Your Company?
A: Our products mainly include water production line, juice production line, tea production line, water filling machine, juice filling machine, tea filling machine, and more.

Q: What are the Properties of Your Beverage Production Lines?
A: Our beverage machinery adopts automatic operation system which greatly improves the performance and productivity of our packaging machines. They have properties of multifunction, standard design, modularization, digital control system, good compatibility, high accuracy, flexibility, and high working efficiency.

All these measures together enable us to provide high quality carbonated beverage production lines, can filling machines, juice production lines, tea filling machines, etc, at competitive prices.

Q: Do Your Water Production Lines Meet Environmental Protection Requirements?
A: Our water production lines are eco-friendly and energy-saving. They adopt advanced environmental protection technologies from Germany and Italy. All production procedures quite meet the standards of ISO9001: 2000.

Q: Which Countries are Your Beverage Machinery Sold to?
A: Our products are widely exported to U.S.A, Russia, England, Canada, Japan, Egypt, Mexico, South Africa, North Korea, Indonesia, Mongolia, Malaysia, Dominica, Nigeria, Libya, Turkey, Kazakstan, Iran, Yemen, Sudan, Vietnam, Bengal, Burma, Serbia, Macedonia, Lebanon, Congo, Syria, Venezuela, Iraq, Saudi Arabia, and Kenya.

TAG:  15000 BPH Aseptic Cold Filling Equipment  36000 BPH Aseptic Cold Filling Equipment  36000 BpH Sterility Cold Filling Equipment  Aseptic Cold Filling Machine
