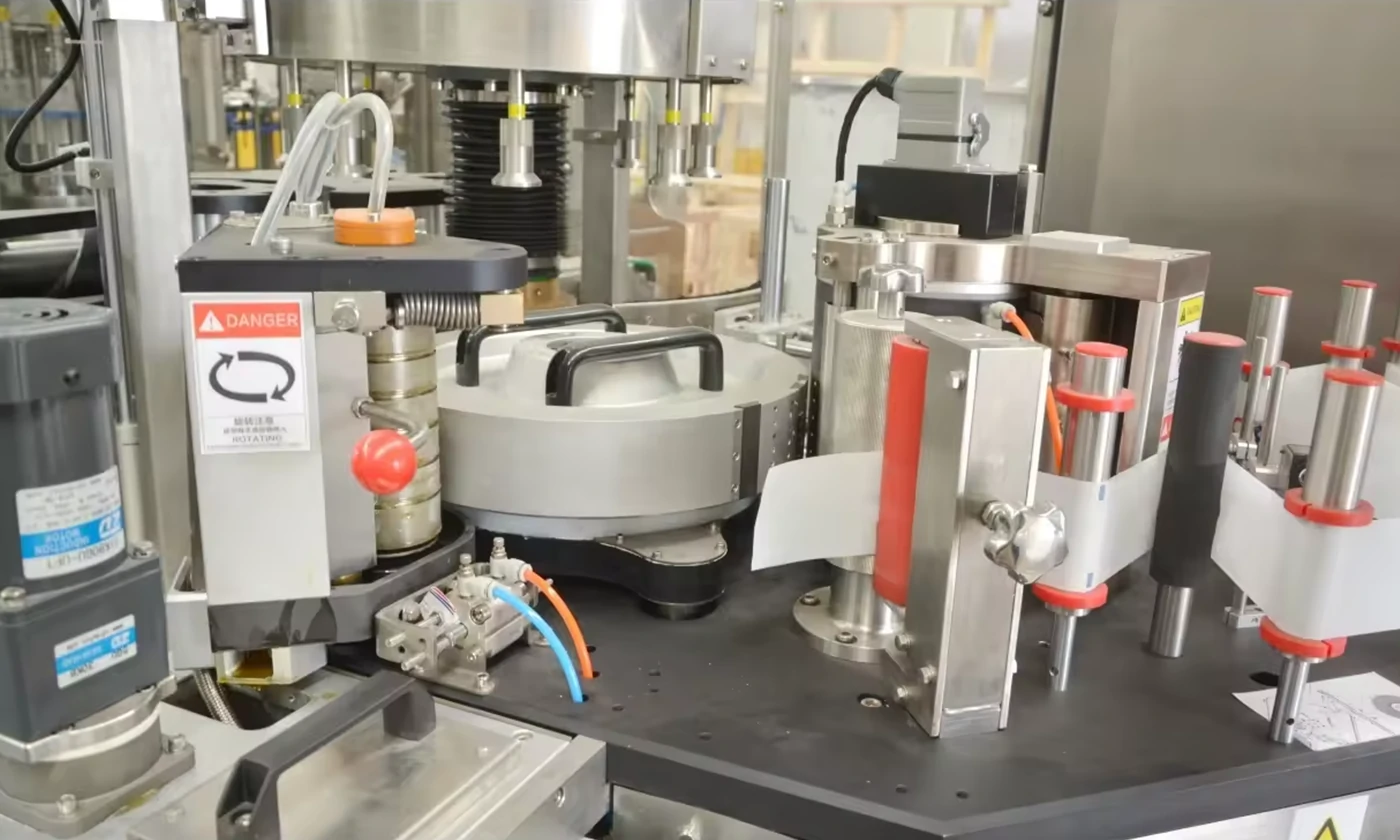

Our automatic rotary OPP labeling machine is widely used for labeling bottles in industries such as detergent, beverages, mineral water, food, and pharmaceuticals. It is suitable for labeling plastic, glass bottles, and tin cans of various shapes, including round, oval, and square. As a professional packaging equipment manufacturer, we offer factory-direct prices to ensure affordability. Additionally, we have a team of professional after-sales service engineers who can provide on-site installation and training services. Our products come with a 2-year warranty, covering all quality issues that arise after installation and commissioning. Within the warranty period, if the machine experiences any quality problems, we will take full responsibility and provide the necessary service support.
| Model | RH8 |
| Number of rotary station | 8 |
| Machine size | 3000L*1900W*2200H(mm) |
| Weight | 4.5T |
| Speed of labeling | 4000BPH-12000BPH(500-2000ml) |
| Power | AC 3ψ380V50Hz |
| Rater power | 12KW |
| Percent of pass | ≥99.5 |
| Accuracy of labeling | ±1mm |
| Diameter of bottle | 110-180mm |
| Material of bottle | Glass, Metal, Plastic |
| Shape | Round |
| Label material | OPP,BOPP |
| Label thickness | 0.035-0.04mm |
| Label height | 35mm-10mm |
| Inside diameter of paper tube | 6inch |
| Power consumption of air source | 0.5Mpa |
| Operation | Automatically |
1.Body is built with stainless steel, steel construction stable and not rust
2.The whole machine used quick release type of construction. In order to change and adjustment easier.
3.Centralized lubricating system for simple and effortless on maintenance, lubrication and cleanness
4.With photo-sensors to detect label output and automatically self-regulated production speed for integrating production line with other machines
5.Used stable and reasonable of compiling program. It can be suitable for operation 24 hours.
6.The bottle working mode is rotary Input and output type.
7.Equipped with the Torque limiter would control the torsion range abnormal situation of machine. It will reduce the accident for operate.
8.Roller coating, gluing balance and glue saving.
9.Alarm system: Caution light & buzzer for out of label, Label break and door open!
10.Cut label system: Used multiple cure of cut system organization. (It is not quick-wear part)
11.The machine production speed is control by the machine input bottle signal. It is automatic transmission. If input bottle stock, then the machine will be increase speed. If input bottle did not have bottle the machine will transmission speed slow.
12.The machine production speed is control by the machine input bottle signal. It is automatic transmission. When the machine output bottle stock then the machine will be transmission speed to slow. If output bottle is smooth the machine will be increase the speed.
Please provide container and label drawings or samples, label material, dimensions, application position, required line speed and conveying direction. HZM uses them to confirm the labeling method, handling parts and machine interfaces.
Physical samples are preferred for final engineering. Label thickness, stiffness, shrink ratio or adhesive behavior, together with container shape and surface condition, affect feeding, positioning and application accuracy.
A defined format range can normally be engineered with recipes and change parts. The exact changeover scope is confirmed from every approved container and label sample rather than assumed from nominal dimensions alone.
Yes. HZM can coordinate upstream processing or bottle making with filling, labeling, coding, packaging, conveying and palletizing. Layout, utilities, controls, factory testing, installation, commissioning and training are defined by the agreed project scope.
