Name: bottled water treatment plant – water purification system for bottling line
Brand: HZM Machinery

Brief Introduction

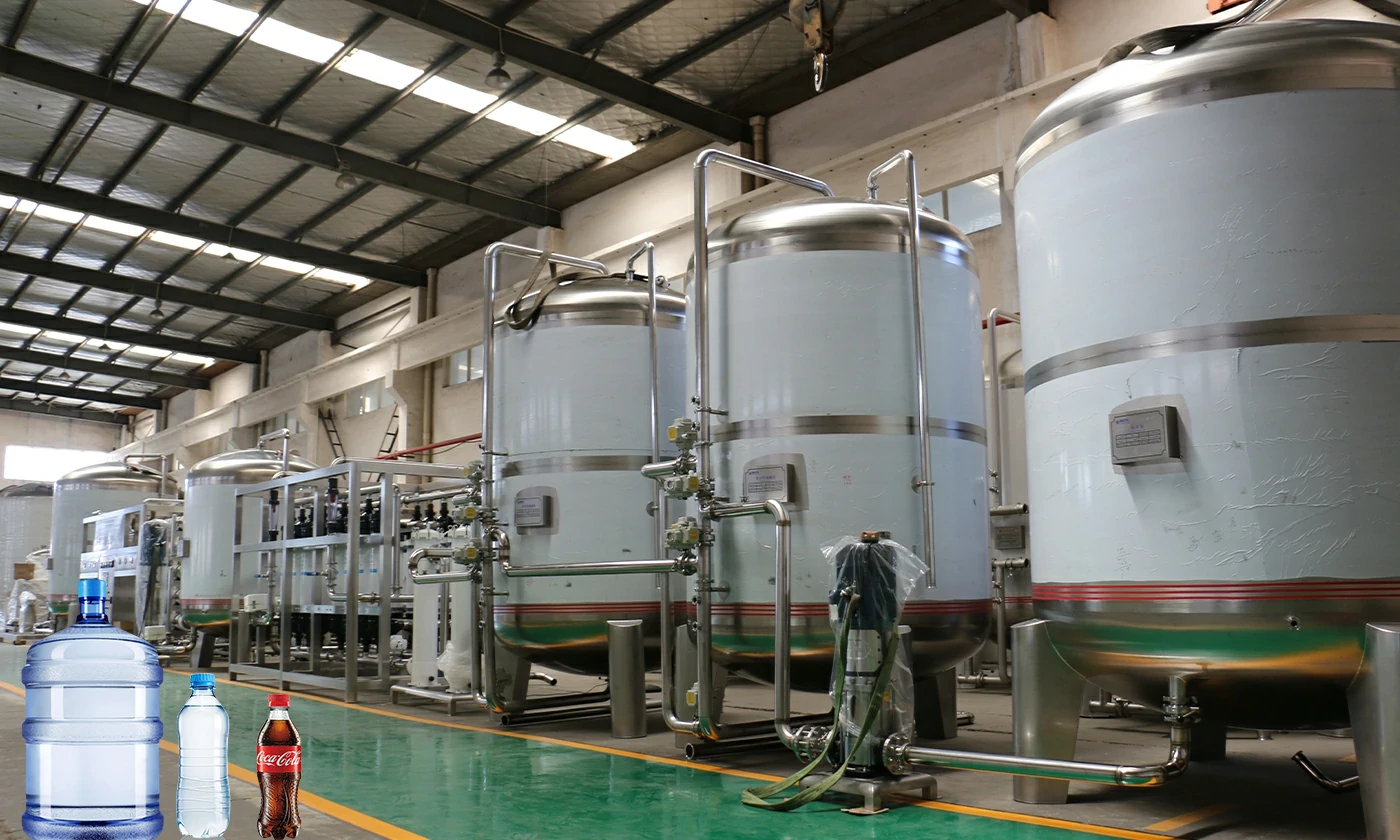

The 10 T/H RO treatment plant supplies purified water to a bottled-water production line. Pretreatment prepares the feed water for membrane separation, and the RO stage reduces dissolved salts. Treated-water storage and final treatment complete the connection to filling equipment.

Video

Product Features

Water Treatment Process Flow

The water treatment process is basically divided into three parts: pretreatment system, deep treatment system and terminal treatment system. Generally, pretreatment includes multi-media filters, activated carbon filter, softener, iron and manganese removal filter, ultra-filtration, micro-filtration.,etc. Deep treatment includes membrane treatment and ion exchange. Terminal treatment covers ozone, UV, etc.

Water Treatment Process Flow

Key attributes

Video Outgoing-Inspection	Provided
Productivity	10000L/Hour
Machinery Test Report	Provided
Warranty	2 Years
Core Components	Gearbox, Pressure vessel, Pump, Gear, Bearing, Engine, Motor, PLC
Weight (kg)	10000 kg
Place of Origin	Jiangsu, China
Brand Name	HZM
Product Name	10T/H RO Water Treatment System For Water&Beverage Production Line
Capacity	10T/H
Application	Pure Water And Beverage Production Line
Type	Pure Water Treatment System
Material	SUS304/SUS316
Marketing Type	New Product 2023
Keywords	Ro Water Treatment
Feature	Eco-Friendly Easy Operation

Key Features

Capacity: 10,000L per hour (10T/H)
Eco-friendly and easy operation
Durable SUS304/SUS316 stainless steel construction
Equipped with high-quality core components: gearbox, pressure vessel, pump, gear, bearing, engine, motor, PLC
Reliable performance with low maintenance
Complies with food, beverage, and pharmaceutical water standards

Why Choose HZM?

HZM is a professional manufacturer of water treatment equipment, serving over 50 countries worldwide. Our bottled water purification systems are widely trusted in the food, beverage, and pharmaceutical industries. Choosing HZM means reliable performance, durable equipment, and strong after-sales service.

Frequently Asked Questions

What information is required to design this water treatment system?

Please provide a recent raw-water analysis, required treated-water standard, hourly demand, operating hours, available utilities and installation space. HZM uses these data to select pretreatment, membrane or polishing stages.

Why is a raw-water analysis required before equipment selection?

Source-water hardness, salinity, turbidity, iron, manganese, microbiology and other parameters determine the process route. Selecting equipment without these data can lead to unstable water quality, low recovery or unnecessary operating cost.

Can the system be expanded or adapted if the water source changes?

Expansion or process changes may be possible, but the new feed-water analysis and demand must be reviewed. Tanks, pumps, membranes, pretreatment capacity, controls and available space determine what can be reused.

Can this equipment be integrated into a complete production line?

Yes. HZM can coordinate upstream processing or bottle making with filling, labeling, coding, packaging, conveying and palletizing. Layout, utilities, controls, factory testing, installation, commissioning and training are defined by the agreed project scope.
