Name: Well Water Purification Small Ro System Ro Plant
Brand: HZM Machinery

Brief Introduction

HZM Well Water Purification System combines advanced Reverse Osmosis (RO) technology with a high-efficiency bottle/barrel filling line, making it the ideal solution for businesses in the drinking water production industry. This automatic system is designed for purifying well water, underground water, and tap water, ensuring high water quality standards for bottled water, barrel water, beverage production, or industrial use.

Whether you're starting a bottled water business or upgrading your existing water plant, HZM offers customized, energy-efficient, and easy-to-operate solutions backed by solid after-sales support.

Video

Product Features

Key Features – HZM Reverse Osmosis Water Treatment & Filling System

Feature	Specification / Description
Product Name	Reverse Osmosis Water Treatment System
Application	Water purification and bottle/barrel filling
Filling Material	Pure Water / Mineral Water
Packaging Types	Bottles, Barrels
Filling Volume Options	2000ml, 5000ml
Filling Accuracy	99.5%
Production Capacity	2 – 200 Tons/Hour
Automatic Grade	Fully Automatic
Voltage Options	220V / 380V
Material	SUS304 / SUS316 Stainless Steel
Core Components	Pumps, RO Membrane, 5 Filling Nozzles
Operation	Easy to Operate with Full Automation
Driven Type	Electric
Machine Weight	Approx. 2000 KG
Dimension (L×W×H)	Custom-made according to project requirements
Warranty	2 Years (1~2 Years for core components)
Place of Origin	Jiangsu, China
Brand Name	HZM
After-Sales Service	On-site installation, commissioning & training
Test Report Provided	Yes
Video Inspection	Provided
Key Selling Points	High Efficiency, Energy Saving, Easy to Operate
Suitable For	All liquid products (drinking water, beverages, etc.)

Water Treatment Process

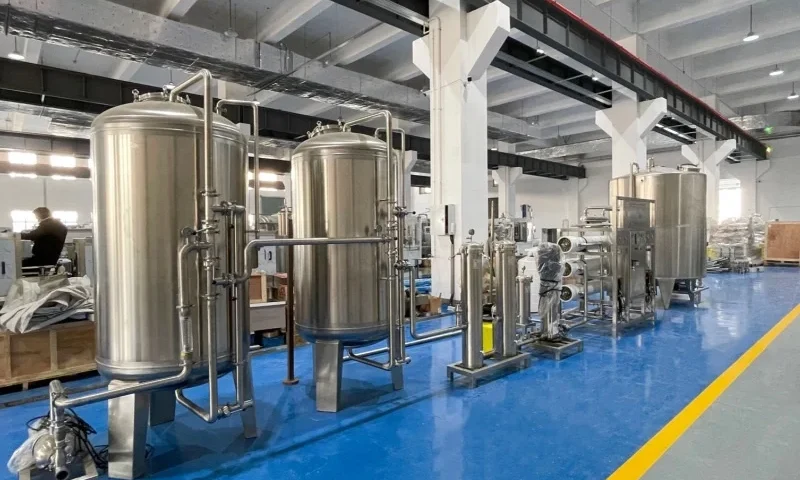

1. Pre-Treatment System

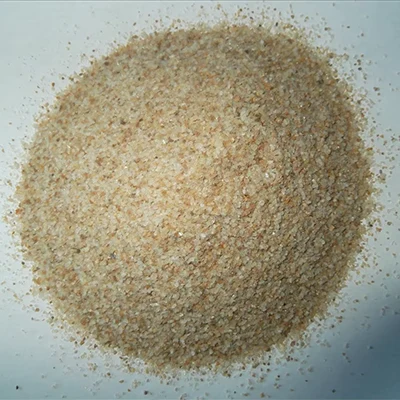

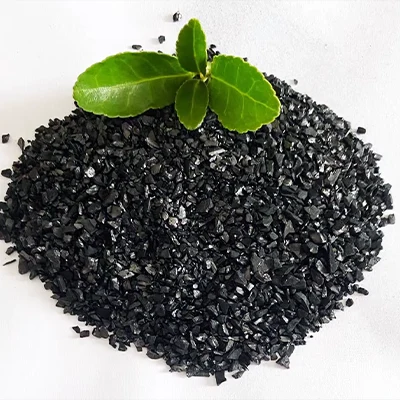

Quartz Sand Filter Activated carbon

Sand/Multimedia Filter: Removes solid particles, sediments, and reduces SDI < 5 to protect RO membranes.
Activated Carbon Filter: Removes organic compounds, chlorine (<0.1mg/L), odors, and improves taste.
Water Softener (Ion Exchange): Eliminates calcium and magnesium ions to prevent scaling.
Precision Filter: Filters particles ≥5 microns to protect the high-pressure pump and RO membrane.
Chemical Dosing (Optional): Includes flocculant and scale inhibitor to enhance water quality and membrane life.

2. Deep Treatment

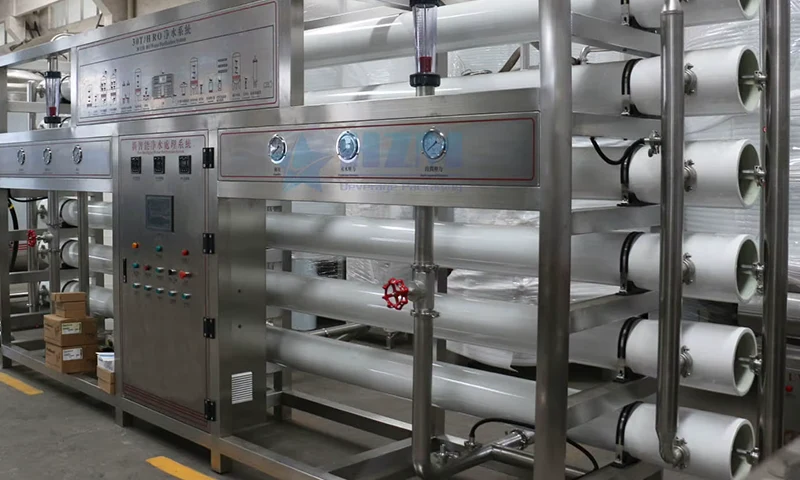

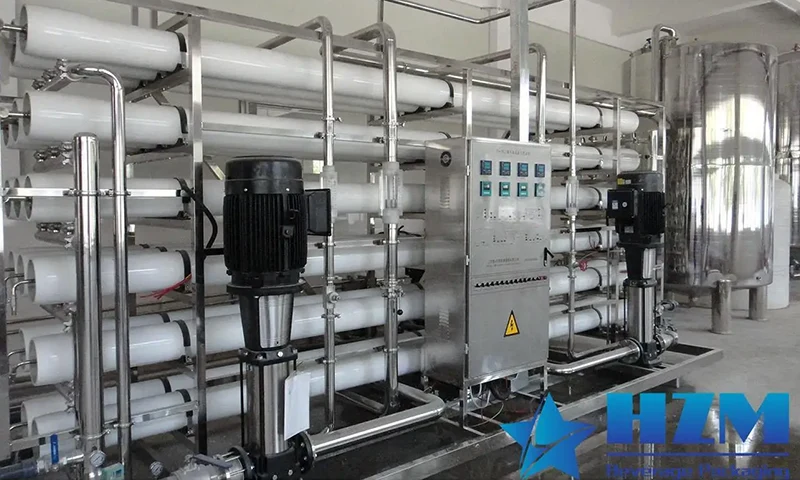

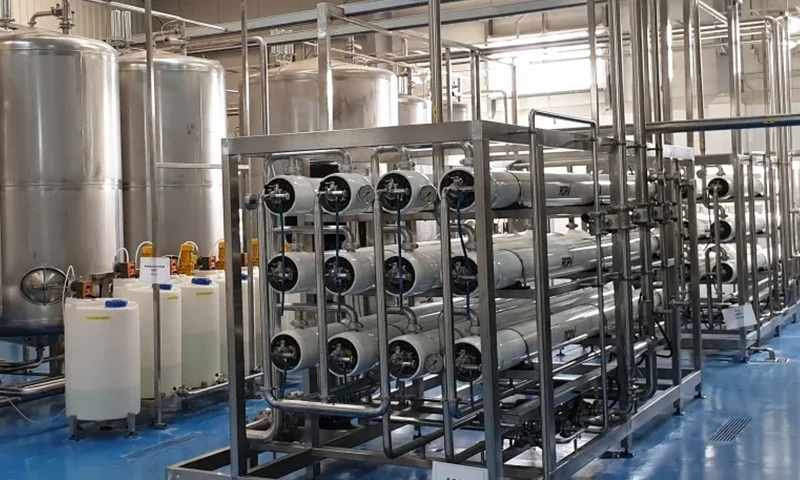

Reverse Osmosis (RO): High-pressure membrane separation technology that removes up to 99% of dissolved salts, bacteria, and heavy metals from water.

3. Terminal Treatment

UV Sterilization: Destroys microbial DNA, effectively killing bacteria and viruses.
Ozone Sterilization: Powerful oxidant for comprehensive disinfection and taste improvement.

Applications

Drinking Water Bottling Plants
Food & Beverage Industry
Pharmaceutical Water Supply
Industrial and Commercial Water Purification
Seawater Desalination Systems

Why Choose HZM?

Over a decade of expertise in water treatment and bottling solutions
Custom-engineered systems to suit your business scale and local water conditions
Complete turnkey solution: from purification to filling and packaging
On-site training and professional after-sales service
Global delivery and support

Frequently Asked Questions

What information is required to design this water treatment system?

Please provide a recent raw-water analysis, required treated-water standard, hourly demand, operating hours, available utilities and installation space. HZM uses these data to select pretreatment, membrane or polishing stages.

Why is a raw-water analysis required before equipment selection?

Source-water hardness, salinity, turbidity, iron, manganese, microbiology and other parameters determine the process route. Selecting equipment without these data can lead to unstable water quality, low recovery or unnecessary operating cost.

Can the system be expanded or adapted if the water source changes?

Expansion or process changes may be possible, but the new feed-water analysis and demand must be reviewed. Tanks, pumps, membranes, pretreatment capacity, controls and available space determine what can be reused.

Can this equipment be integrated into a complete production line?

Yes. HZM can coordinate upstream processing or bottle making with filling, labeling, coding, packaging, conveying and palletizing. Layout, utilities, controls, factory testing, installation, commissioning and training are defined by the agreed project scope.
