Name: Industrial food water treatment equipment – 10T/H RO Water Treatment System
Brand: HZM Machinery

Brief Introduction

The 10 T/H RO water treatment system prepares purified water for food, beverage and bottled-water production. Pretreatment protects the membranes and the RO stage reduces dissolved salts. The system can connect to treated-water storage, final treatment and production-water distribution.

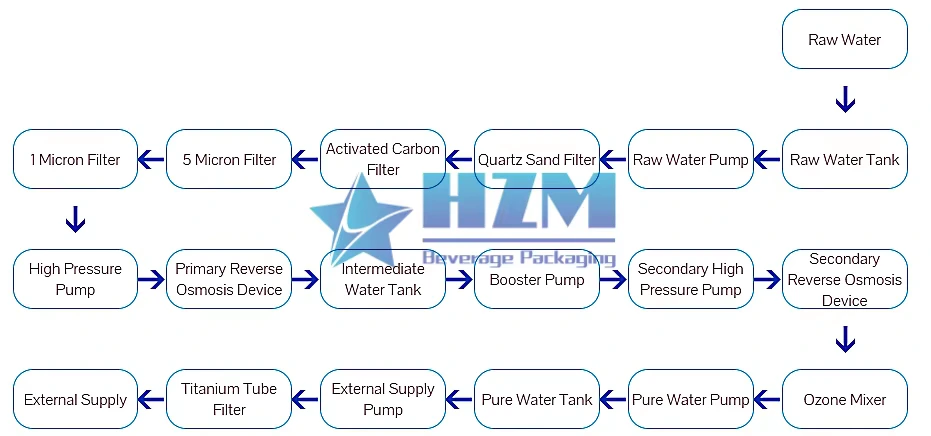

Water treatment process diagram

Video

Product Features

Product parameters

Attribute	Description
Brand Name	HZM
Product Name	10T/H RO Water Treatment System
Capacity	10,000 Liters per Hour
Application	Pure Water & Beverage Production Line
Type	Pure Water Treatment System
Material	SUS304 / SUS316 Stainless Steel
Weight	10,000 kg
Warranty	2 Years
Core Components	Gearbox, Pressure Vessel, Pump, Gear, Bearing, Engine, Motor, PLC
Operation	Eco-Friendly, Easy Operation
Marketing Type	New Product 2023
Inspection & Testing	Video Outgoing Inspection Provided
Machinery Test Report	Provided
Packaging	Standard Export Wooden Case for Sea/Land Transport
Port of Dispatch	Shanghai Port, China

Water Treatment Flow Structure

1. Pretreatment System

Sand Filter (Mechanical Filter)
Removes large particles, colloids, and suspended solids, reducing the SDI (silt density index) below 5 to protect the RO membrane.
Activated Carbon Filter
Adsorbs organic matter, chlorine (<0.1mg/L), odors, and improves water taste.
Softener (Ion Exchange Resin)
Removes calcium and magnesium ions:
Precision Filter (Security Filter)
Stainless steel vessel with ≤5μm pore filter element to trap fine particles and protect high-pressure pumps & membranes.
Flocculant (Optional)
Added when water has high suspended solids. Helps coagulate particles for removal.
Scale Inhibitor (Optional)
Prevents mineral scaling on the RO membrane by stabilizing minerals in solution.

2. Deep Treatment System

Reverse Osmosis (RO)
A high-pressure membrane separation process that effectively removes dissolved salts, bacteria, heavy metals, and organics from water.

3. Terminal Treatment System

UV Sterilization
Kills microbes by damaging their DNA using broad-spectrum ultraviolet light.
Ozone Disinfection
A powerful oxidizer that destroys microorganisms through biochemical oxidation reactions.

Applications

Bottled water & beverage processing
Food & dairy production lines
Brewing (beer and soft drinks)
Pharmaceutical water (injection grade)
Seawater desalination pre-treatment

Packaging & Shipping

Packaging: Securely packed in a standard export wooden case, suitable for long-distance land and sea transport.
Shipping Port: Shanghai, China

Frequently Asked Questions

What information is required to design this water treatment system?

Please provide a recent raw-water analysis, required treated-water standard, hourly demand, operating hours, available utilities and installation space. HZM uses these data to select pretreatment, membrane or polishing stages.

Why is a raw-water analysis required before equipment selection?

Source-water hardness, salinity, turbidity, iron, manganese, microbiology and other parameters determine the process route. Selecting equipment without these data can lead to unstable water quality, low recovery or unnecessary operating cost.

Can the system be expanded or adapted if the water source changes?

Expansion or process changes may be possible, but the new feed-water analysis and demand must be reviewed. Tanks, pumps, membranes, pretreatment capacity, controls and available space determine what can be reused.

Can this equipment be integrated into a complete production line?

Yes. HZM can coordinate upstream processing or bottle making with filling, labeling, coding, packaging, conveying and palletizing. Layout, utilities, controls, factory testing, installation, commissioning and training are defined by the agreed project scope.
