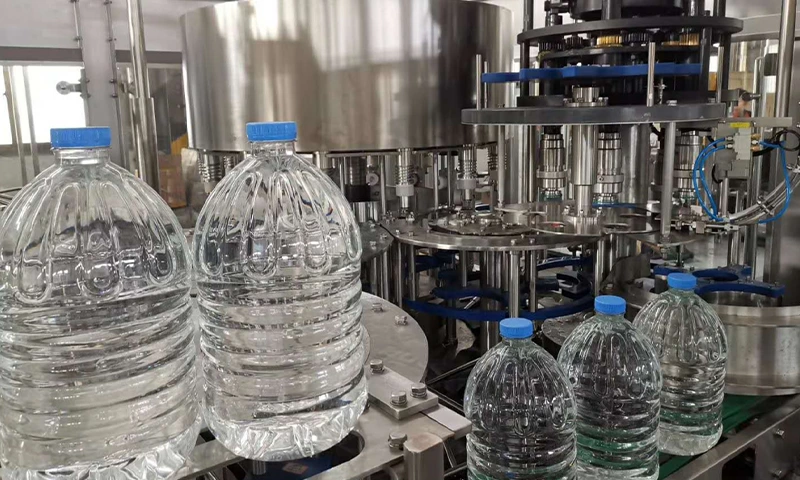

10L Water Filling Machine 1200BPH

Brief Introduction

The bottle enters into the machine by screw feeder. The bottle that enters into the filler is hold by neck holding plate. The filling valve acted by the cam can realize up and down. It adopts pressure filling way. The filling valve opens and begins filling when it moves down and touches the bottleneck, the filling valve move up and leave the bottleneck when it finishes filling, the full bottle is transferred to the capping part through hold neck transition poking wheel. The stop screwing knife holds the bottleneck, keeps bottle upright not rotating. The screw capping head keeps in revolution and autorotation. It can finish a whole capping course including catching, pressing, screwing, discharging through the action of the cam. The full bottle is transferred to bottle outlet conveyor to the next process through poking wheel. The whole machine is enclosed with windows, the height of enclosed window is higher than the peak of the 3 in 1 machine, in the bottom of the enclosed window has return air outlet.

Video

Product Features

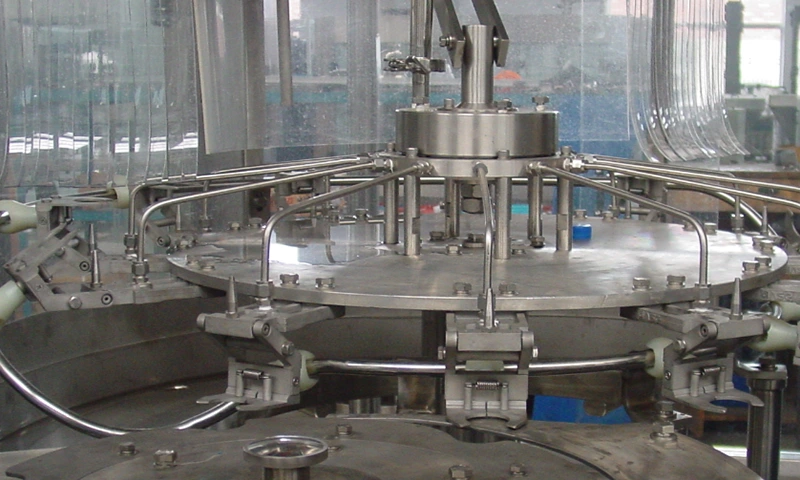

Rinsing part

Except the down framework, the transmission parts and some parts that must be made of special materials. Other spare parts are made of stainless steel 304.
The roller bearing is made of stainless steel, the sealing ring is made of EPDM material, and plastic is made of UMPE.
The gripper is made of stainless steel, the position where hold the bottleneck is also made of stainless steel, compared with the traditional rubber gripper, it is much hygiene, durable, and no quick-wear parts, the screw parts of the bottleneck can avoid being polluted by the rubber gripper.
The gripper equipped with high-efficient spray nozzle, it can develop to any position of inner wall of the bottle, and can save rinsing water. There is a cover above the spray nozzle which can prevent water spilling; and there are regulatory recycle slot and recycle pipes under the nozzles.
Bearing is made of stainless steel, the sealing ring is made of EPDM material, and plastic is made of UMPE.
Rinsing time can be guaranteed for 4 seconds.
By adjusting the height of the rotary parts to adapt for different bottle height
The motivation is derived from the driven system in the framework passed by gear.

The supplying of rinsing water is controlled by solenoid valve.

Filling part

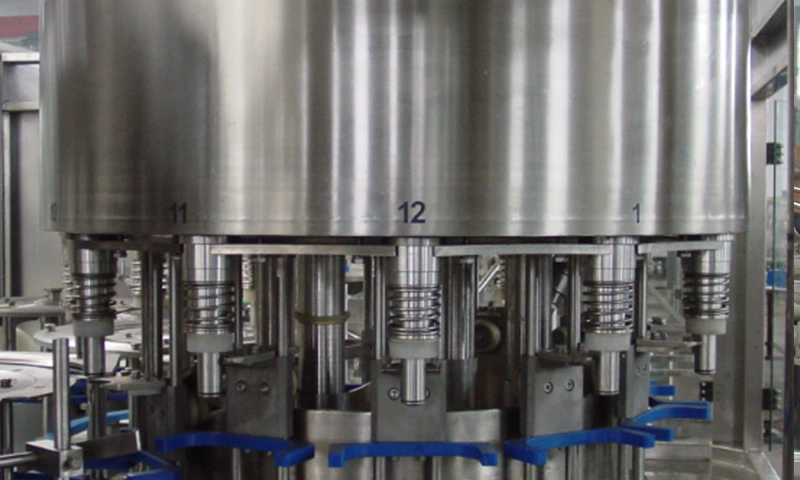

Filling tanks and valves

(Filling tanks and valves)

Adopted Germany Igus anti-corrosion non-maintaining bearing that can reduce the pollution of filling to the environment.
The rotate plate is made of SUS AISI304, large flat toothed bearing.
The pressure mechanical valve is introduced the advanced foreign design with a fast filling speed, no hygiene corner pocket, a few sealing parts, and precise liquid level control. The whole valve is made of food grade stainless steel.
The filling system has a CIP circulation system to wash the pipeline and fake-cup used for cleaning filling valve. This system can clean the juice pipe, liquid tank and filling valve etc. effectively.
This filling system has an automatic temperature control system.
The filling valve opens and begins filling when it moves down and touches the bottleneck, the filling valve move up and leave the bottleneck when it finishes filling.
The juice supply adopts the automatic pneumatic valve magnetic liquid-level switch to control the liquid tank automatically.
Sliding bearing is adopted Germany igus anti-corrosion non-maintaining bearing, that can reduce the pollution of filling to the environment. Rolling bearing made of stainless steel, the sealing ring is made of EPDM material, plastics is made of UMPE.
The motivation of the filler is derived from the driven system in the framework and passed by gear.

Capping part

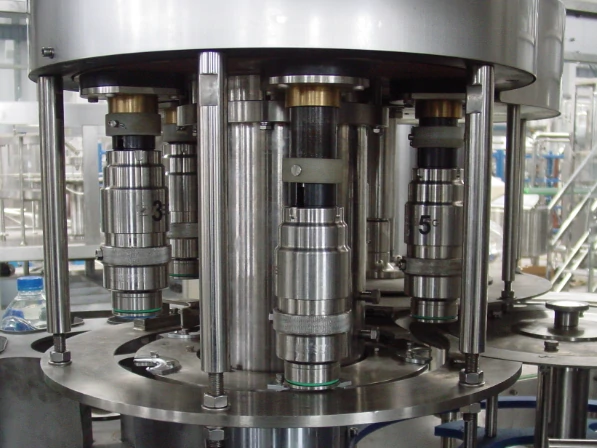

Capping heads

(Capping heads)

This unit is the highest degree of accuracy of 3 in 1 machine, it is important for the machine to run stably and the product quality.

Characteristic of the screwing capper as follows:

Introduce most advanced cap sealing technology–France “ZALKIN “. With the help of expert from institute of electro-mechanics and mechanical engineering of Shanghai Communications University, we successfully designed. For example: I) the screwing capping head cam (the main parts which can assure the machine run stability), while adopting “ZALKIN” technology, the expert improve the authenticity and stability of the machine focused on dynamics and kinematics. II) Screwing capping head (the main parts which can assure the capping quality), the expert improve the design of magnetic steel, this improvement can reduce the defective rate of capping better and the traditional character of easy to set and adjust the torque of screwing capping head.
The screwing capping head is dual-purpose design; it is suitable for flat cap.
The device which can take out the reverse cap and prevent the reverse cap passing is settled in the cap-falling guide.
A group of photoelectric switches are settled on cap-falling guide. The machine will stop when there is no cap on the guide.
A bottle inlet detect switch is settled on the screwing capper.
There are aseptic nozzles between the transition poking wheel and filling parts to rinse the product rested in the bottleneck screw parts.
There is a cap-lock cylinder in the joint between the cap-falling guide and poking cap plate. It is realize that no feeding no cap.
By adjusting the height of the rotary parts to adapt for different bottle height.
The motivation of the screwing capper is derived from the driven system in the framework and passed by gear.
The main parts of the screwing capper are processed by the digital-control processing center

Technology parameters:

Item	1200BPH MONOBLOCK Machine
Numbers of working position	12 heads for washing 12 heads filling;5 heads capping
Design capacity 10L	1100~1200BPH 10L
Air pressure	0.7Mpa
Air consumption	1.25 M³/min
Rinsing water pressure	0.2~0.25 Mpa
Rinsing water consumption	4T/H
Rinsing time	7S
Drop time	7S
Main motor power	4.0 KW
Appearance size	4280X2880X2750 (L×W×H)
Equipment Gr. weight	7000KGS

Configurations:

Item	Description
Main Material	SUS 304/316-CHINA
Main motor+ Reducer	ABB-Germany
Rinsing pump	CNP-CHINA
Inverter	MITSUBISHI-Japan
PLC-FX3SA Series	MITSUBISHI-Japan
Touch screen	MITSUBISHI -Japan
Contactor	Schneider-France
Hot relay	Schneider-France
Air switch	Schneider-France
Approaching switch	TURCK-Germany
Photoelectric switch	BANNER-USA
Pneumatic components	FESTO-Germany
Sliding bearing	Igus-Germany

Frequently Asked Questions

What information is needed to configure the 10L Water Filling Machine 1200BPH?

Please provide the product recipe or liquid characteristics, container and closure drawings or samples, required sustained output, utilities and factory layout. HZM uses these details to confirm the filling method, machine model and line interfaces.

Which filling method is used for still water?

Normal-pressure filling is commonly used for purified, mineral and other non-carbonated water. Bottle size, neck finish, cap, hygienic requirement and target output determine the final rinsing, filling and capping configuration.

Can the machine handle more than one bottle or package format?

A defined format range can often be supported with recipes and change parts. Compatibility is confirmed from approved drawings or samples because container diameter, height, neck finish, closure and handling stability affect changeover scope.

Can this equipment be integrated into a complete production line?

Yes. HZM can coordinate upstream processing or bottle making with filling, labeling, coding, packaging, conveying and palletizing. Layout, utilities, controls, factory testing, installation, commissioning and training are defined by the agreed project scope.
