Categories: Filling machine, Oil Filling Machine, Products
Tip: You can request pricing for individual machines or a complete production line solution.

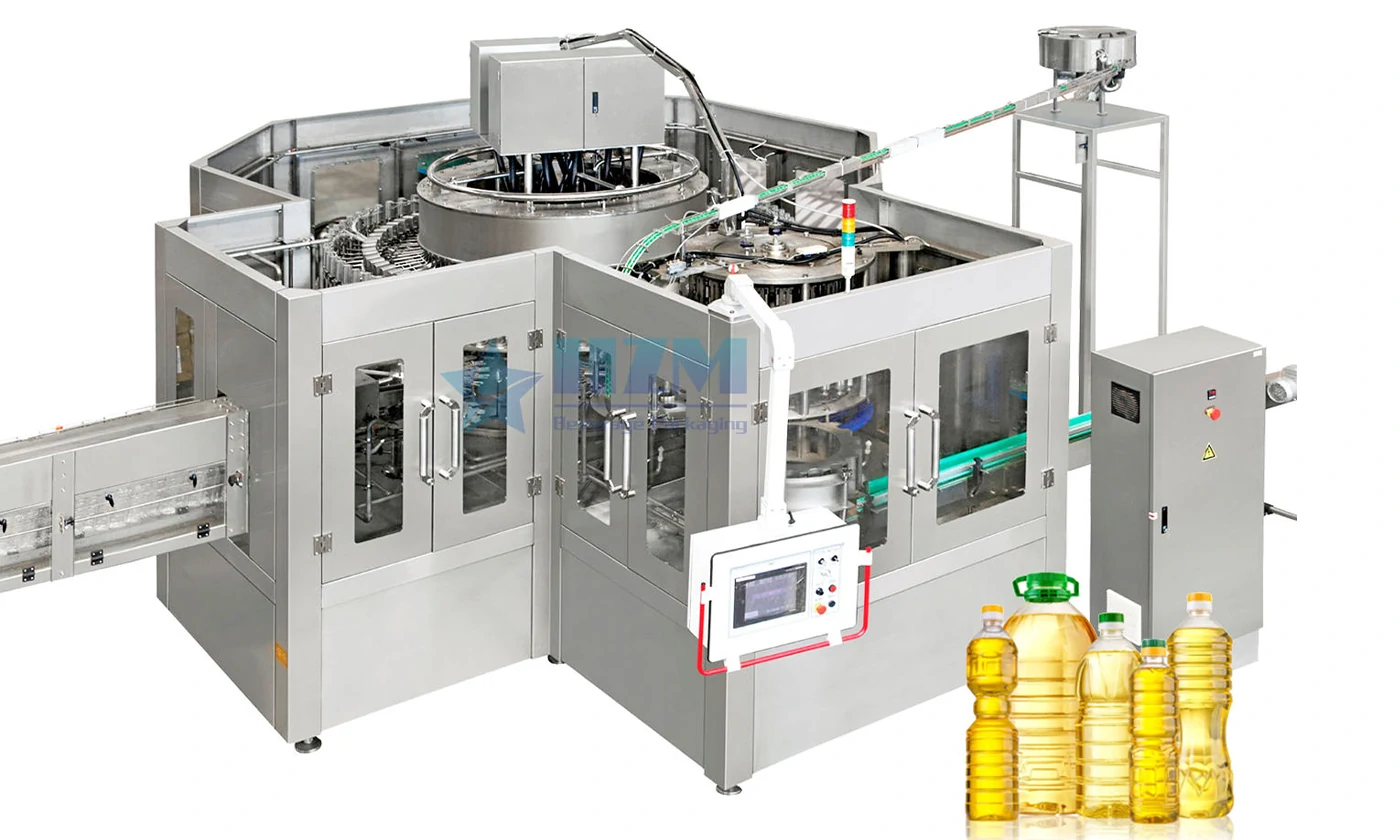

Upgrade your edible oil production with HZM Machinery’s PET Bottle Edible Oil Bottling Line, designed for efficiency, accuracy, and hygiene. This automatic rotary type edible oil filling machine is ideal for edible oils, including vegetable oil, sunflower oil, olive oil, and canola oil, ensuring precise filling for bottles of various sizes.
Our bottling line integrates automatic washing, filling, and capping, providing a complete turnkey solution for small to medium-scale edible oil production. Built with high-quality components, including motors, pumps, and PLC control systems, this line guarantees stable performance, low maintenance, and easy operation.
| Parameter | Specification |
|---|---|
| Automatic grade | Automatic |
| Voltage | 380V |
| Driven type | Electric / Mechanical |
| Filling material | Oil |
| Application | Edible oil, Food, Beverage |
| Packaging type | Bottles |
| Packaging material | Plastic |
| Warranty | 1 Year |
| After-sales Service Provided | Field installation, commissioning and training |
| Key selling points | Easy To Operate |
| Core components | Motor, Pump, PLC |
| Machinery test report | Provided |
| Video outgoing-inspection | Provided |
| Filling accuracy | ±1mm |
| Weight (KG) | 2500 |
| Place of origin | Jiangsu, China |
| Brand name | HZM |
| Dimension (L*W*H) | Customizable |
| Product name | Oil filling and capping machine |
| Function | Filling, Sealing |
| Usage | Oil filling |
| Bottle type | PET bottle |
| Bottle range | Diameter: 50~120mm; Height: 160~330mm |
| Capacity | 3000-15000bph @ 500ml |

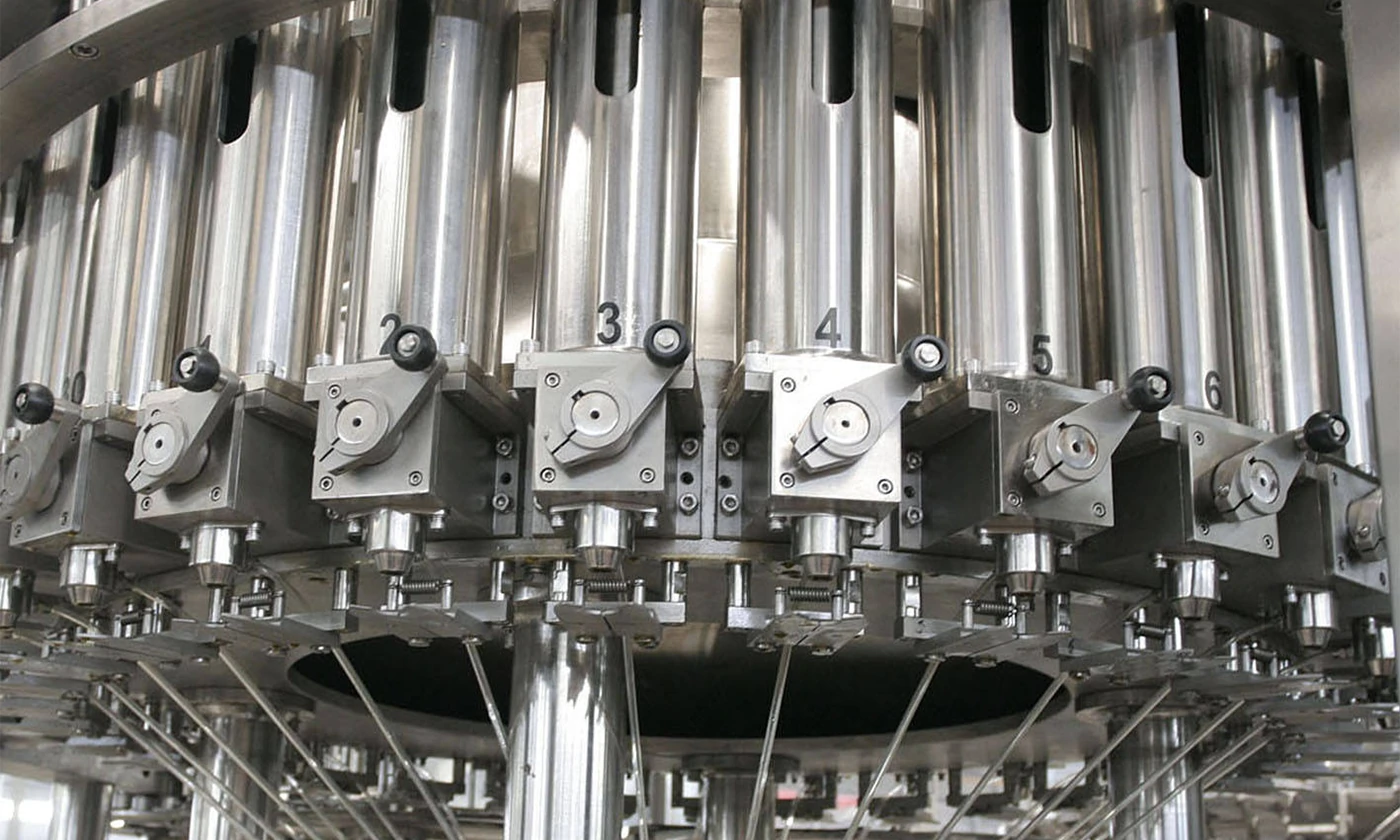

1. The flow control devices of each filling head are independent of each other, precision adjustment is very convenient.
2. The material of the machine material contact part can use the food grade material according to the products feature, in line with the GMP standard.
3. With regular filling, no bottle no filling, filling quantity/production counting function etc features.
4. Convenient maintenance,no need any special tools.
5. Using drip tight filling head,no leaking.
6. Automatic Rotary Type Filling: Fast and accurate filling for PET bottles of different volumes.
7. High Efficiency: Capacity ranges from 3000 to 15000 bottles per hour (depending on bottle size).
8. Versatile Bottle Range: Diameter 50~120mm; Height 160~330mm.

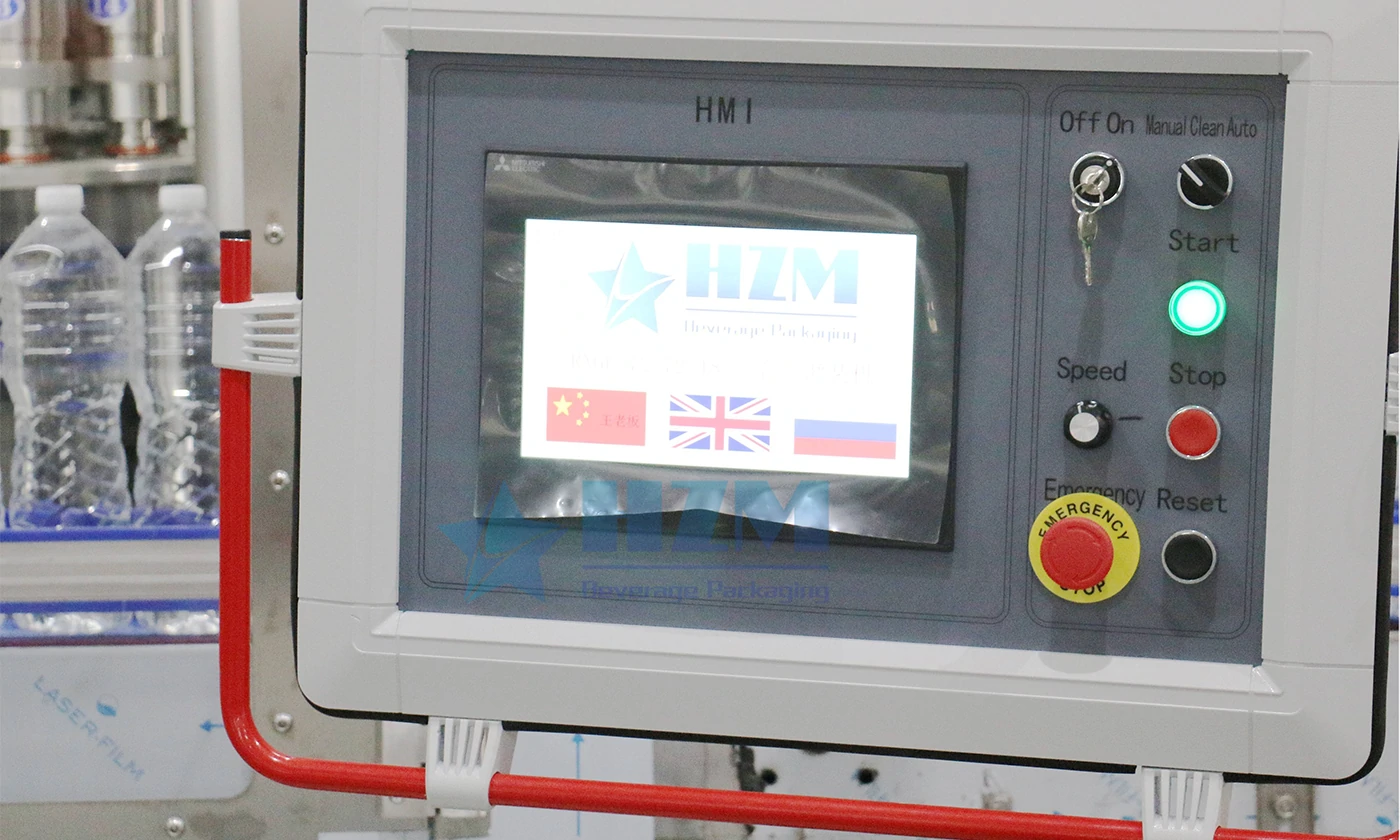

9. Easy to Operate: PLC and touchscreen control system simplifies production.
10. Hygienic & Safe: Stainless steel contact parts ensure food-grade standards.
11. Turnkey Solution: Includes bottle washing, filling, capping, and optional labeling.
12. After-Sales Support: Field installation, commissioning, and staff training provided.
High-Quality Components: Durable motor, pump, and PLC ensure long service life.
Customizable Solutions: Adaptable to different bottle sizes and production capacities.
Turnkey Production Line: Reduce setup time and increase productivity.
Professional Support: Installation, commissioning, and operator training included.
Global Export Experience: Trusted by clients worldwide for reliable edible oil filling lines.
Please provide the product recipe or liquid characteristics, container and closure drawings or samples, required sustained output, utilities and factory layout. HZM uses these details to confirm the filling method, machine model and line interfaces. The current product specification references 960-2880bph; final guaranteed output is confirmed against the approved operating conditions.
Piston, flowmeter, weighing or another volumetric method is selected according to viscosity, density, foaming, temperature, fill volume and accuracy requirement. Product trials may be requested for difficult liquids.
A defined format range can often be supported with recipes and change parts. Compatibility is confirmed from approved drawings or samples because container diameter, height, neck finish, closure and handling stability affect changeover scope.
Yes. HZM can coordinate upstream processing or bottle making with filling, labeling, coding, packaging, conveying and palletizing. Layout, utilities, controls, factory testing, installation, commissioning and training are defined by the agreed project scope.
