Gravity Mechanical Valve PLC MMI Tea Drink Production Line

Material: Stainless Steel Process: Pressure Filling System
Certification: GB/T19001-2000 Type: Filling Machine
Filling Valve: Gravity Mechanical Valve Or Customer Needs Applicable Bottle Type: 200ml-1500ml
Application: Juice Tea Drink Function: Juice Filling Machine
Model: DGC10 Number Of Bottle Rinsing Clip: 32
Number Of Filling Valve: 32 Number Of Capping Head: 10
Capacity: 10000-14000 BPH Bottle Diameter: Φ60-Φ96 Mm
Bottle Height: 180-315 Mm Bottle Volume: 350-1500 Mm
Outline Dimensions: 3300x3000 X2700 Mm Weight: 7200 Kg
High Light: MMI Tea Drink Production Line, 1500ml Tea Drink Production Line, 1500ml PLC Tea Production Line

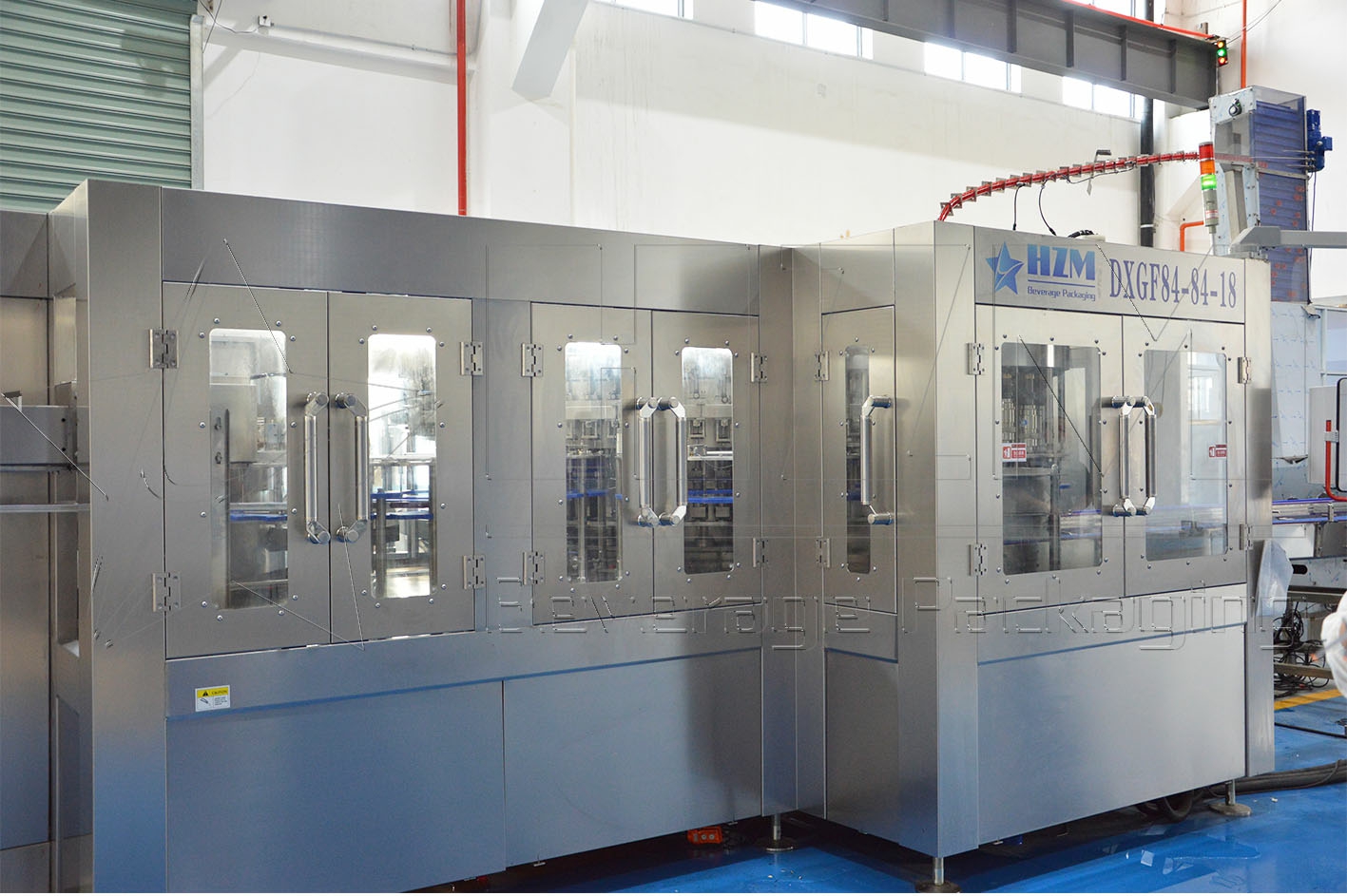

Gravity Mechanical Valve PLC MMI Tea Drink Production Line



Stainless Steel PLC MMI Tea Drink Production Line

Fully enclosed combined trinity high temperature filling unit. The whole production line is controlled by PLC, MMI, variable frequency speed regulation, equipped with a filling temperature control system and CIP self-cleaning system, and a low vacuum filling method, which can fully meet the technical requirements of various juices and tea beverages.


Specifications of Bottled Water Filling Machine

Model Number of Bottle Rinsing Clip Number of Filling Valve Number of Capping Head Capacity

(BPH)

Bottle Size

Outline Dimensions (mm) Weight (Kg) Remark
Diameter (mm) Height (mm) Volume (ml)
DGC06 18 18 6 5000-6000 Φ60-Φ96 180-315 350-1500 2480x1980x2600 4000 All-in-one Type
DGC08 24 24 8 6000-10000 Φ60-Φ96 180-315 350-1500 2800x2400 x2600 6000 All-in-one Type
DGC10 32 32 10 10000-14000 Φ60-Φ96 180-315 350-1500 3300x3000 x2700 7200 All-in-one Type
DGC12 40 40 12 14000-18000 Φ60-Φ96 180-315 350-1500 3900x3180 x2700 9000 All-in-one Type
DGC15 50 50 15 18000-20000 Φ60-Φ96 180-315 350-1500 5300x4200 x2900 10000 All-in-one Type
DGC15 60 60 15 20000-24000 Φ60-Φ96 180-315 350-1500 5700x4600 x2900 12000 All-in-one Type
DGC18 72 72 18 22000-28000 Φ60-Φ96 180-315 350-1500 6600x5100 x2900 15000 All-in-one Type



Features

1. In order to meet the related food hygiene requirements, all parts in contact with liquid are manufactured by quality stainless steel, for instance, the filling valves are made of stainless steel 316.
2. Adopting low vacuum pressure filling method, our juice, tea drink production line achieves high filling speed, high filling precision and great filling quality at the same time.
3. Bottles are fed by the air conveyor and transported by clipping the bottle neck and put out by normal conveyor chain. Hence, it is easy and convenient to change bottle size.
4. The use of "PICK, PLACE" capping system ensures reliable capping, the adoption of magnetic torque structure makes it convenient to adjust the torque.




FAQ

Q: How do You Control the Quality and Cost When You Produce Beverage Machinery?
To guarantee the excellent performance of our beverage production lines and beverage machinery, we introduce advanced technology from Germany and Italy, and constantly improve our production technology of liquid filling. Apart from that, free trainings are offered to our employees to help them improve technical skills. In addition, we strongly believe that beverage production lines and beverage machines with high pass rate and reliable quality can effectively reduce production cost. Thus, we strictly implement product inspection in every step of production, from raw material acquisition to shipping our finished products, to ensure the quality and pass rate. Besides, much attention is also placed on perfect management system and high quality employees for a higher working efficiency.

All these measures together enable us to provide high quality carbonated beverage production lines, can filling machines, juice production lines, tea filling machines, etc, at competitive prices.

Q: Do Your Water Production Lines Meet Environmental Protection Requirements?
Our water production lines are eco-friendly and energy-saving. They adopt advanced environmental protection technologies from Germany and Italy. All production procedures quite meet the standards of ISO9001: 2000.

Q: Which Countries are Your Beverage Machinery Sold to?
Our products are widely exported to U.S.A, Russia, England, Canada, Japan, Egypt, Mexico, South Africa, North Korea, Indonesia, Mongolia, Malaysia, Dominica, Nigeria, Libya, Turkey, Kazakstan, Iran, Yemen, Sudan, Vietnam, Bengal, Burma, Serbia, Macedonia, Lebanon, Congo, Syria, Venezuela, Iraq, Saudi Arabia, and Kenya.

Q: What Kind of After-sale Services does Your Company Provide?
Installation guides, device debugging and technical trainings are offered to our global customers to help them make full use of our water production lines, tea filling machines, beverage production lines, and other beverage machinery.

Q: What Certificates has Your Beverage Production Line Got?
1. Our beverage machinery is approved as qualified products for seven years by Chinese beverage industry association.
2. Our company is approved as excellent supplier of filling equipment four times by Chinese beverage industry association.
3. Our company is entitled "Star Enterprise" by Chinese food and packaging machinery industry association.
4. Our company is approved as the enterprise technical center of Zhangjiagang Province.
5. Our company obtains ISO9001:2000 International Quality Management System Certification.
6. Our company is awarded as demonstration enterprise of national CAD application engineering by Ministry of Science and Technology of China.
7. All our products are awarded as CE certification.
8. Our company becomes the vice chairman of Chinese food and packaging machinery industry association.
