Moderate temperature filling technology adopts normal PET bottle and fills tea beverage, energy drinks and juice at 70±2℃. Products can reach the requirement of shelf life withoutany preservatives. The capacity ranges from 5,000BPH to 36,000BPH at 500ml.
Moderate temperature filling machine adopts the heat resistance limit of standard PET bottles, and not need to use heat resistant PET bottles, which can significantly reduce the cost of bottle making. Due to the lower filling temperature, higher hygiene level and microbial control requirements must be adopted. The filling system integrates of disinfectant washing, aseptic water bottle washing, filling and capping, and partially introduces the design concept and control technology of the aseptic filling system.
1.This machine has a compact structure, perfect control system, easy to operate and highly automated.
2.Only by changing the star-wheel, arch board can realize fill bottle shape change.
3.The parts contact with product is made of quality SUS316/304, anti-corrosive, and easy to clean.
4.Rapid flow, highly filling precision, nicety liquid level without any liquid loss to satisfy the filling process demand.
5.The capping head adopts constant torque magnetic device to guarantee capping quality and impact cap.
6.This machine has a high efficient cap arranging system, perfect cap feeding with self-control and self-protection device.
7.The machine adopts perfect overload protective device can ensure the operator and machine safety.
8.The control system has many functions, such as control producing speed, cap shortage detection, bottle block automatic stop and production counting etc.
9.The main electric and air-drive components are world famous brand products.
10.All control is advanced touch-screen operation and realize people-computer dialogue operation.
| Name | Supplier |
| Main Motor & Reducer | SEW-Germany |
| Rinsing Pump | CNP-China |
| Inverter | SIEMENS-Germany |
| PLC | SIEMENS-Germany |
| Touch Screen | SIEMENS-Germany |
| Contactor | SCHNEIDER-France |
| Hot Relay | SCHNEIDER-France |
| Air Switch | LEUZE/BANNER-Germany |
| Photoelectric Switch | BANNER-USA |
| Pneumatic Components | FESTO-Germany |
| Sliding Bearing | IGUS-Germany |
| Model | Washing
Heads |
Filling
Heads |
Capping
Heads |
Capacity
(Based on 500ml) |
Bottle Diameter
(mm) |
Bottle Height
(mm) |
Dimension
(mm) |
Power
(KW) |
| XXGF16/16/16/5 | 16 | 16 | 5 | 6000 | 50-110 | 186-350 | 5450*2200*2700 | 3.0 |
| XXGF24/24/24/8 | 24 | 24 | 8 | 10000 | 50-110 | 186-350 | 6900*2900*2700 | 5.5 |
| XXGF32/32/32/8 | 32 | 32 | 8 | 12000 | 50-110 | 186-350 | 6110*3230*2700 | 5.5 |
| XXGF40/40/40/10 | 40 | 40 | 10 | 15000 | 50-110 | 186-350 | 7100*3300*2700 | 5.5 |
| XXGF50/50/50/12 | 50 | 50 | 15 | 18000 | 50-110 | 186-350 | 8380*3960*2700 | 11.0 |
| XXGF60/60/60/18 | 60 | 60 | 15 | 24000 | 50-110 | 186-350 | 9920*4200*2700 | 11.0 |
Please provide the product recipe or liquid characteristics, container and closure drawings or samples, required sustained output, utilities and factory layout. HZM uses these details to confirm the filling method, machine model and line interfaces. The intended application is juice, tea, energy drinks and other still beverage recipes. The current product specification references 5000BPH; final guaranteed output is confirmed against the approved operating conditions.
Hot filling, ambient filling or a pulp-handling configuration is selected from fill temperature, acidity, particle size, viscosity and shelf-life process. The beverage recipe and process flow must be reviewed before model confirmation.
A defined format range can often be supported with recipes and change parts. Compatibility is confirmed from approved drawings or samples because container diameter, height, neck finish, closure and handling stability affect changeover scope.
Yes. HZM can coordinate upstream processing or bottle making with filling, labeling, coding, packaging, conveying and palletizing. Layout, utilities, controls, factory testing, installation, commissioning and training are defined by the agreed project scope.
Talk to an engineer
Send your capacity, bottle specification and beverage type for a complete proposal.
Equipment

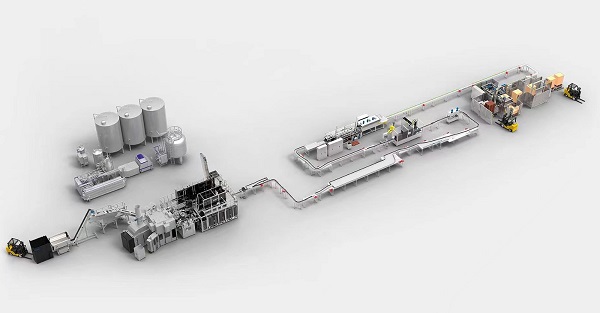

This Beverage Filling Machine & Turnkey Filling Line for Juice is configured for juice, tea, carbonated soft drinks, energy drinks, water and beer at…
Learn moreEquipment

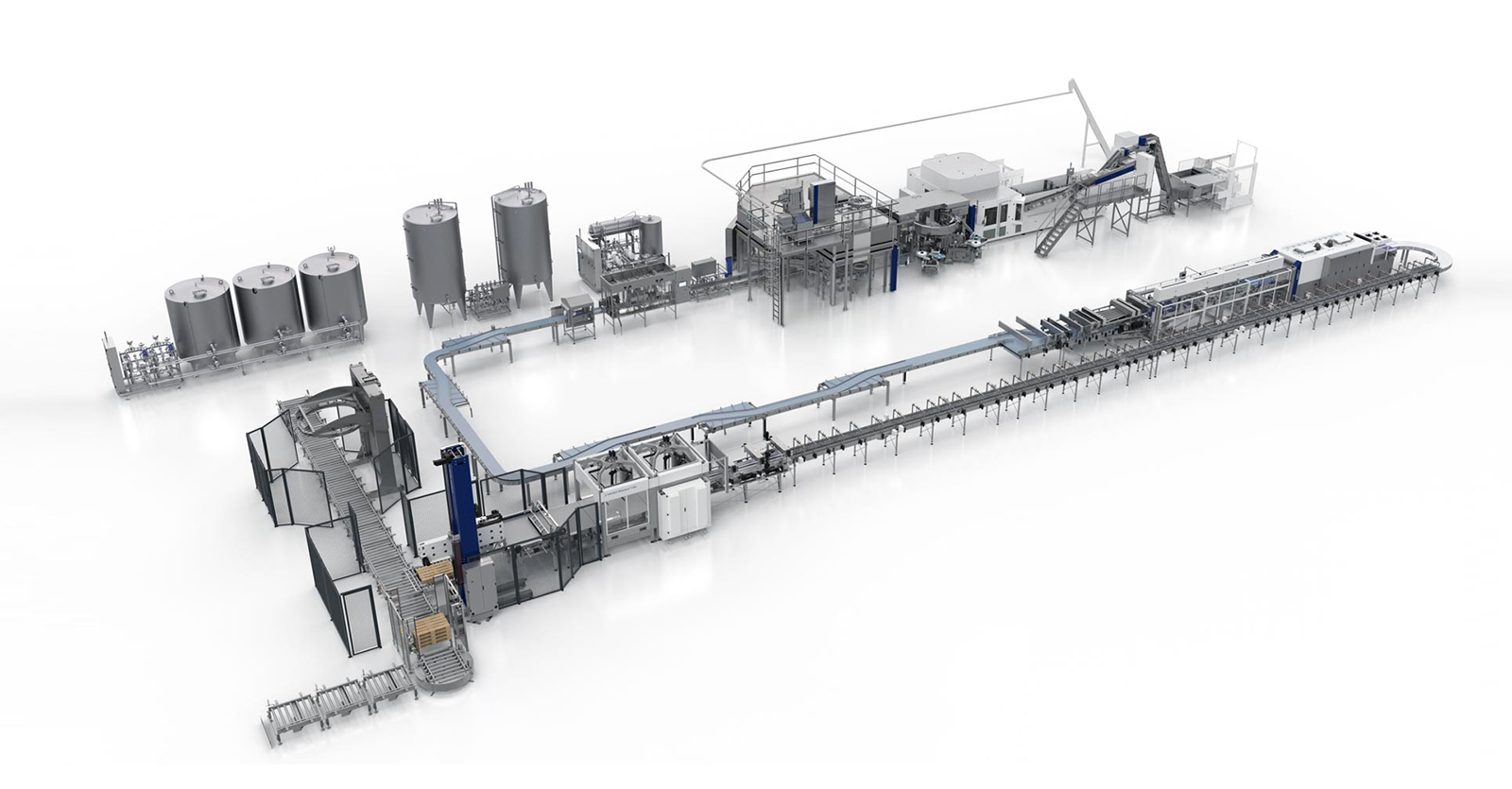

This Bottled Water Filling Machine & Turnkey Bottling Line is configured for purified water, mineral water and still drinking water at 5,000–42,000 bottles/hour; final…
