3-5 Gallon Water Filling Line

Application: purified water, mineral water and still drinking water.
Container / closure: 3-5 gallon returnable jars and approved cap specification.
Capacity: 300BPH–2000BPH.
Filling process: Bottle rinsing, normal-pressure filling and capping matched to the approved package.
Project scope: Standalone equipment or integration into a complete production line, based on the confirmed quotation.

Categories: Filling machine, Products, Water Filling Machines

Tip: You can request pricing for individual machines or a complete production line solution.

Factory-direct equipment and customization
Complete layout and utility planning
Installation, commissioning and training
24-month after-sales support

Brief Introduction

QGF barrel production line is composed of sterilizing, washing, filling and capping for barrel. It’s especially used for the production of drinking water of 3 gallon and 5 gallon, with type QGF-120, QGF-300, QGF-450, QGF-600, QGF-900, QGF-1200. QGF-2000. It intergrates bottle washing, filling and capping into one unit. In order to achieve the purpose of washing and sterilizing, the washing machine use multi-washing liquid spray and-thimerosal spray. This thimerosal can be used circularly. The capping machine can cap barrel automatically. This line equips with water spraying device in order to ensure those caps sterilizer and clean. It also can automatically carry out barrel , washing, sterilizing, filling, capping with complete function, modern design and high degree of automation. It is a new kind of barreeled water auto-production line, which intergrates mechanism, electricity and pneumatics technologies together.

Video

Product Features

Product Introduction

Cap Decapper

It is a fully automatic cap decapping machine developed by our company and suit for the 5 gallon bottle production line.

External Barrel Washer

The external barrel washing machine integrates automatic barrel measurement, barrel inlet, barrel washing, spraying, and barrel outlet. It has the characteristics of fast washing speed, high washing cleanliness, compact structure, simple operation and convenient maintenance.

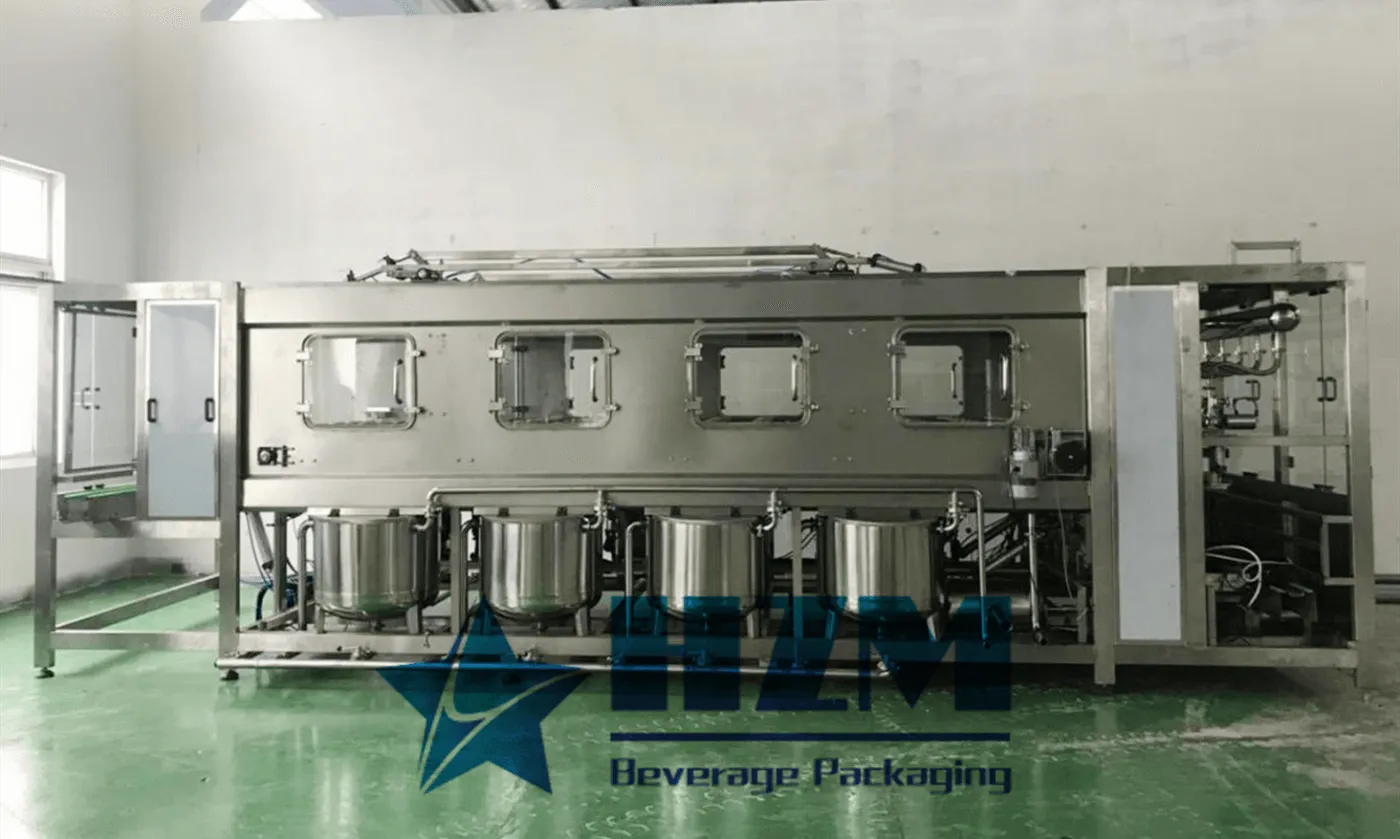

Internal Barrel Washing-Filling-Capping Machine

QGF barrel filling line is used to produce 3/5 gallon drinking water. This machine composed with washing, filling and capping. It is the ideal equipment for mineral water, distilled water and pure water producing process. The machine is made of great stainless steel which is corrosion resistant and easy cleaning. All the pneumatic parts are from the famous brand AIRTAC. Both the inner and outer shower nozzle for washing barrel adopts the special technology equipment from American Sprayer Company. The machine works reliably and efficiently based on the compact structure and high automatic technology. It Is a fully automatic barreled water producing equipment combined with machine, electronic and pneumatic components.

Product Configurations

Name	Supplier
Inverter	MITSUBISHI-Japan
Rinsing/Fillling Pump	CNP-China
PLC	MITSUBISHI-Japan
Touch Screen	MITSUBISHI-Japan
Touch Screen	SIEMENS-Germany
Contactor	SCHNEIDER-France
Hot Relay	SCHNEIDER-France
Air Switch	SCHNEIDER-France
Pneumatic Components	Airtac-Taiwan China

Product Parameters

Model	Filling Heads	Capacity (Based on 5 gallon)	Barrel Dimension (mm)	Dimension (mm)	Power (KW)
QGF-120	1	120	φ230420, φ 276490	370013002200	1.76
QGF-300	2	300	φ230420, φ 276490	406018602200	15.0
QGF-450	3	450	φ230420, φ 276490	500020002200	16.0
QGF-600	4	600	φ230420, φ 276490	540022002200	19.0
QGF-900	6	900	φ230420, φ 276490	700022002200	20.0

Frequently Asked Questions

What information is needed to configure the 3-5 Gallon Water Filling Line?

Please provide the product recipe or liquid characteristics, container and closure drawings or samples, required sustained output, utilities and factory layout. HZM uses these details to confirm the filling method, machine model and line interfaces. The intended application is purified water, mineral water and still drinking water. The current product specification references 300BPH–2000BPH; final guaranteed output is confirmed against the approved operating conditions.

Which filling method is used for still water?

Normal-pressure filling is commonly used for purified, mineral and other non-carbonated water. Bottle size, neck finish, cap, hygienic requirement and target output determine the final rinsing, filling and capping configuration.

Can the machine handle more than one bottle or package format?

A defined format range can often be supported with recipes and change parts. Compatibility is confirmed from approved drawings or samples because container diameter, height, neck finish, closure and handling stability affect changeover scope.

Can this equipment be integrated into a complete production line?

Yes. HZM can coordinate upstream processing or bottle making with filling, labeling, coding, packaging, conveying and palletizing. Layout, utilities, controls, factory testing, installation, commissioning and training are defined by the agreed project scope.
