Brief Introduction

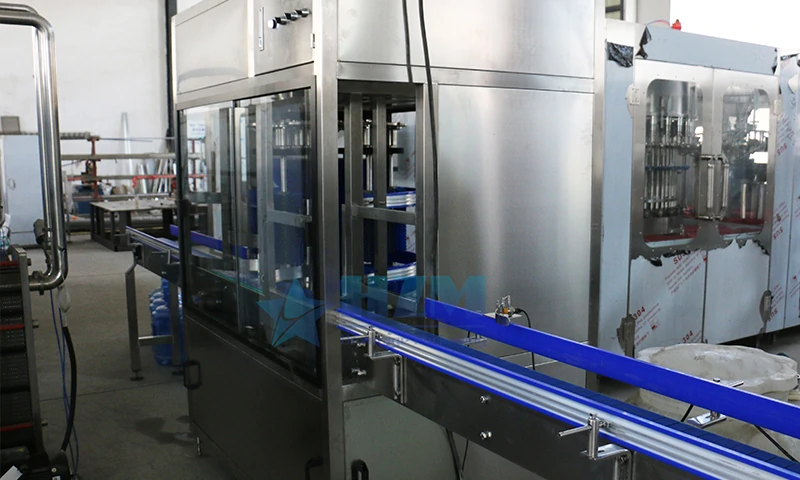

The 5 gallon water filling line specially for 3-5 gallons barreled drinking water, with type QGF-150, QGF-200, QGF-300, QGF-450,QGF-600, QGF-900, QGF-1200.It integrateds bottle washing,filling and capping into one unit, in order to achieve the purpose of washing and sterilizing,The washing machine uses multi-washing liquid spray and disinfectant spray, the disinfectant can be used circularly,The capping machine can be cap barrel automatically ,The line equips with water spraying device in order to ensure those caps sterile and clean ,it also can automatically carry out barrel,washing, sterilizing, filling,capping, counting and products discharging,with complete function,modern design and high degree of automation ,It is a new kind of barreled water auto producing line ,which integrates mechanism,electricity and pneumatics technologies together.

Video

Product Features

Key Attributes

Filling Volume	5 Gallon
Automatic Grade	Automatic
Voltage	380 V / 220 V / 415 V
Driven Type	Hydraulic
Filling Material	Pure Water, Water
Application	Beverage
Packaging Type	Barrel
Packaging Material	Plastic
Warranty	2 Years
After-sales Service Provided	Field installation, commissioning and training; Video technical support; Online support
Key Selling Points	Easy To Operate, High Accuracy
Core Components	PLC, Motor, Pump
Filling Nozzle	1, 3, 6, 12
Machinery Test Report	Provided
Video Outgoing-Inspection	Provided
Filling Accuracy	99.9%
Place of Origin	Jiangsu, China
Weight (KG)	3000
Brand Name	HZM
*Dimension (LWH)*	3000 × 20000 × 1500 mm
Product Name	5 Gallon Water Filling Machine / 20L Barrel Filling Machine
Function	Bottle Washing, Filling, and Capping
Bottle Type	Barrel / Gallon
Filling Volume	3–5 Gallon
Material	Stainless Steel 304 / 316
Filling Liquid	Pure Water
Control	PLC + Touch Screen + Transducer
Filling Products	Pure Water
Power	5 KW
Filling Type	Gravity Filling Water Valve

Product specifications

Model	QGF-120	QGF-200	QGF-300	QGF-450	QGF-600	QGF-900	QGF-1200
Suitable bottle shape and size	18.9L bottle
Compressed air pressure	0.3-0.7MPa
Bottle washing medium	Sterile water
Washing pressure	0.25MPa
Main motor	1.5	2.2	2.2	2.2	4.5	5.5	7.5
Dimension(M)	2.911.8	3.21.22.3	3.91.22.3	51.52.3	6.21.82.3	7.971.82.7	10.7822.7
Weight(KG)	500	1500	3000	3500	4500	5500	7500

Core Product Parameters

Parameter Category	Specific Specifications/Description
Applicable Barrel Volume	3-gallon to 5-gallon barreled water
Control Method	PLC (Programmable Logic Controller)
Automation Level	Full-process automatic control, no manual intervention required
Adaptable Water Source	Purified water/mineral water provided by water treatment systems

Production Process

Bottle Decapping
Empty barrels are steadily conveyed into the decapping machine, which automatically removes the bottle caps.

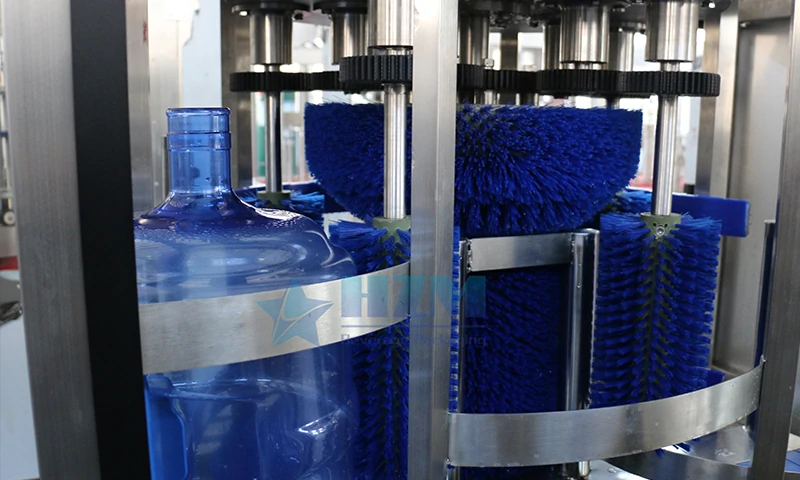

External Brushing and Washing
The decapped barrels enter the external brush washing machine, where they are thoroughly cleaned with hot alkali and pure water, ensuring full sanitation of the outer surface.
Internal Rinsing, Filling, and Capping

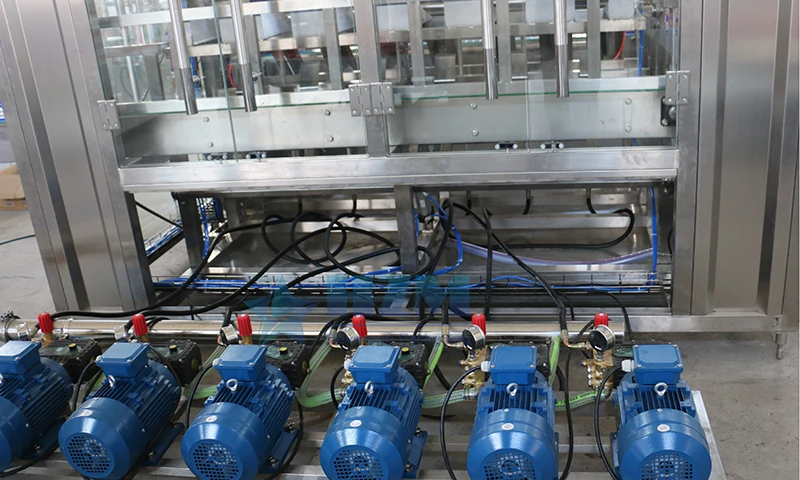

Barrels are then transferred to the integrated rinsing-filling-capping machine. Inside the system, bottles undergo multiple rinsing stages using hot alkali, disinfectant, hot water, and pure water, followed by filling with treated pure water. The machine then automatically caps the bottles.
Shrink Wrapping
After capping, the bottles pass through the shrink packing machine, where cap shrink-sealing ensures hygiene and product integrity during transport.

Features & Advantages

Fully automatic operation with high efficiency
Suitable for 3–5 gallon bottles
Hygienic design with stainless steel construction
Multi-stage washing ensures sanitation and quality
Modular design for easy maintenance and scalability
Adjustable production capacity (100–2000 BPH)

Applications

Drinking water production plants
Beverage and bottled water manufacturers
Industrial or commercial pure water systems

If you would like to learn more about the detailed configuration, customized solutions, or pricing of this production line, please feel free to contact us or leave a message directly. We will provide you with dedicated technical support and service.

Frequently Asked Questions

What information is needed to configure the Automatic 5 Gallon Water Filling Line?

Please provide the product recipe or liquid characteristics, container and closure drawings or samples, required sustained output, utilities and factory layout. HZM uses these details to confirm the filling method, machine model and line interfaces.

Which filling method is used for still water?

Normal-pressure filling is commonly used for purified, mineral and other non-carbonated water. Bottle size, neck finish, cap, hygienic requirement and target output determine the final rinsing, filling and capping configuration.

Can the machine handle more than one bottle or package format?

A defined format range can often be supported with recipes and change parts. Compatibility is confirmed from approved drawings or samples because container diameter, height, neck finish, closure and handling stability affect changeover scope.

Can this equipment be integrated into a complete production line?

Yes. HZM can coordinate upstream processing or bottle making with filling, labeling, coding, packaging, conveying and palletizing. Layout, utilities, controls, factory testing, installation, commissioning and training are defined by the agreed project scope.

Our Factory

Beverage Packaging Machine Assembly Workshop

International Customers Visiting HZM Machinery Factory

HZM Engineers Discussing a Beverage Production Line with Customers
