Automatic Blow Molding Machine
Automatic PET bottle blowing for water and beverage packaging, with capacities of 12,000–24,000 bottles/hour at 500 ml.
Learn more
PET Bottle Blow Molding Machine
- Application: PET bottle production for drinking water, beverages and other liquid packaging.
- Capacity: 12,000–21,600 bottles/hour at 500 ml.
- Mould options: 6, 8, 9 or 12 cavities.
- Maximum bottle volume: 2 L on HZ-CS6-38, HZ-CS8-38 and HZ-CSS9-38; 0.7 L on HZ-CSS12-38.
- Process: preform feeding, heating, stretch blowing and bottle discharge.
Tip: You can request pricing for individual machines or a complete production line solution.
- Factory-direct equipment and customization
- Complete layout and utility planning
- Installation, commissioning and training
- 24-month after-sales support
Brief Introduction
PET bottle blowing molding machine is the introduction of foreign advanced technology counterparts on the basis of the trend for domestic blowing equipment to high-speed, high-volume development, specially developed, developed. Mainly be used for pure water, juice, carbonated beverage, edible oil, dairy PET bottle blowing. The machine has reasonable structure, small footprint, low power consumption, gas consumption, good stability, and many other advantages.
Video
Product Features
Product Advantage
1. 10% Output Increased
This machine has a mechanical structure design for high capacity. Servo controllers are used to elevate capacity for up to 10%. Coordinating with BECKHOFF system from Germany with effective control over co-motion of multiple shafts, redundant waiting time can be mitigated and goals of elevating capacity, stability, and safety can be achieved. Also remote CCTV is available to increase service quality, reduce productive costs, and improve effciency.
2. 20% Preform Weight Reduction
The all-electric linear design going with production of light-weight bottles can reduce 20% of bottle weight. The unique seal design is utilizing theory of pressure to maintain form of cap thread without distortion during blowing. The heating system, focusing on light-weight cap thread, is equipped with an independent cooling system for prevention of distortion caused by overheating of the neck fnish.
3. 30% Energy Saving
There is an air recycling device for re-use of high-pressure air within blow moulding machine for further conversion to be supplied to pneumatic tanks of each unit. Also we programmed the best permutation and combination of heating and reflection boxes which can save 30%~35% of energy waste compared with conventional linear PET blow moulding machines.
Product Configurations
| Model | HZ-CS6-38 | HZ-CS8-38 | HZ-CSS9-38 | HZ-CSS12-38 |
| Clamping force(KG) | 60,000 | 72,000 | 60,000 | 72,000 |
| Clamping stroke(mm) | 130 | 130 | 130 | 130 |
| Stretching stroke(mm) | 320 | 350 | 320 | 240 |
| Bottom stroke(mm) | 50 | 50 | 50 | 50 |
| Cavity pitch(mm) | 120 | 120 | 80 | 80 |
| Number of cavity | 6 | 8 | 9 | 12 |
| Max volume(L) | 2 | 2 | 2 | 0.7 |
| Neck diameter range (mm) | 30 | 30 | 18-30 | 18-30 |
| Max container diameter(mm) | 105 | 105 | 105 | 70 |
| Max container height (mm) | 320 | 320 | 320 | 240 |
| Carriage unit(pcs) | 120 | 162 | 156 | 192 |
| Total power(KW) | 50 | 78 | 49 | 67 |
| Air consuming (ltr/min) | 8,000 | 9,100 | 10,500 | 14,000 |
| Capacity for 0.5L (BPH) |
12,000 | 16,000 | 18,000 | 21,600 |
| Dimension(mm) | 5,530*1,750*2,600 | 6,600*1,900*2,600 | 6,100*1,800*2,600 | 7,000*2,020*2,600 |
| Weight(KG) | 8,000 | 10,000 | 8,000 | 12,000 |

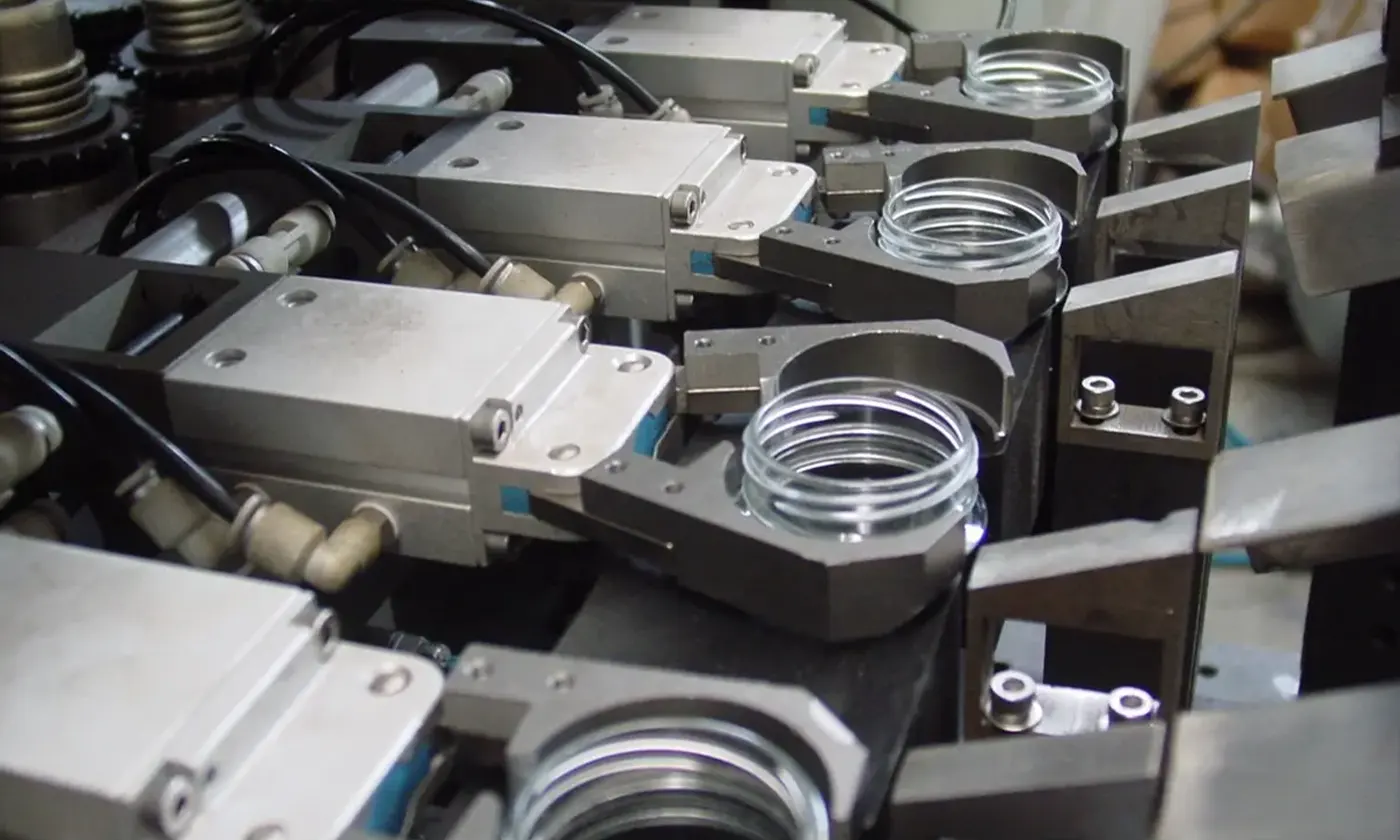

PET bottle blow molding machine components
Featured components
Auto-loader
Auto-loader improves working efficiency, accurate transportation, reliable and durable, raw materials are completely free of moisture, pollution, foreign matter, and loss during feeding process. Realize transportation process of feeding process, avoid danger of high-altitude feeding, reduce labor intensity and increase production efficiency.
Infrared heating lamp
Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable;Heating lamp, reflector width and height can be adjusted to suit preform heating of different structure, with automatic
temperature-removal device to ensure the constant temperature of oven.
Product Features
1.The whole operation of bottle blowing machine with touch-screen operation, full display, production speed, shift production counting, fault type, etc. can be displayed on the screen. And automatic statistics failure time, fault type and other information, can achieve Man-machine dialogue.
2.Secondary blowing system specially designed to ensure the stability of the bottle molding quality, appropriate technology to meet customer standards.
3.The PET bottle blow molding machine adopts four infrared heater thermostat control, digital automatic voltage regulator thermostat system.
4.The customers can set the appropriate temperature according to different preform is heated, and the other contains a variety of bottle-shaped blown required packages.
5. This bottle blowing machine is equipped with automatic processing machines and preform billet hoist.
Frequently Asked Questions
What information is needed to configure the PET Bottle Blow Molding Machine?
Please provide the bottle drawing, volume, neck finish, preform specification, bottle weight, resin, required output and available high-pressure air conditions. These details determine the mold, heating, blowing and auxiliary-equipment configuration.
What determines bottle compatibility and production output?
Bottle geometry, volume, preform weight, material distribution, cavity count, heating time and compressed-air capacity all affect stable output. The committed performance is confirmed after reviewing the approved bottle and preform.
Can one machine produce different PET bottle formats?
Often yes within an engineered range, using suitable molds and change parts. Each bottle and preform combination must be checked because neck finish, heating profile, stretch ratio and air demand can differ.
Can this equipment be integrated into a complete production line?
Yes. HZM can coordinate upstream processing or bottle making with filling, labeling, coding, packaging, conveying and palletizing. Layout, utilities, controls, factory testing, installation, commissioning and training are defined by the agreed project scope.
