Categories: Blow molding machine, Products
Tip: You can request pricing for individual machines or a complete production line solution.

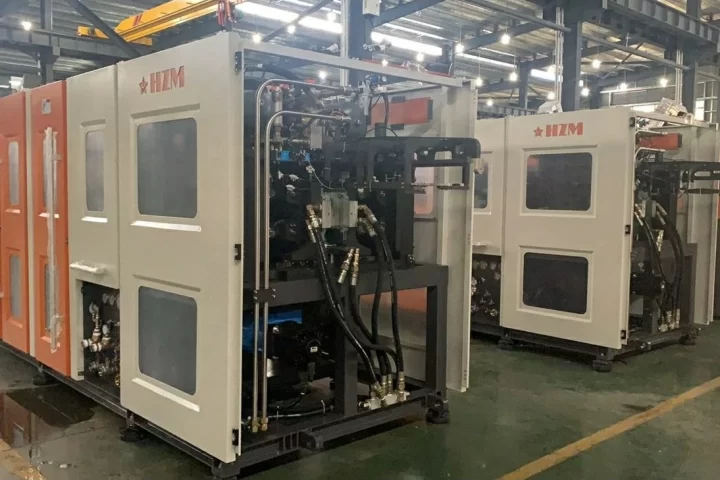

automatic PET stretch blow molding machine,This unique process expertly merges both stretch and blow molding techniques, yielding top-tier, transparent, and lightweight bottles that find extensive application in beverages, personal care items, and various liquid or semi-liquid products.
PET stretch blow molding machines for bottle manufacturing for Mineral Water, Juice, Warm fill, CSD, Syrup, Liquor, Solid Food, and Confectionery.
We offer a wide gamut of products including the finest quality, high performance Automatic Blow Moulding Machine. Only the finest materials are utilized by us in the fabrication of these products. All materials are procured from reliable and trusted resources. We trust our resources for quality materials owing to the years of strong and stable ties established with them. Precision engineered these products are conceptualized and developed by expert professionals. All professionals are selected from the finest talent in the industry and are trained in the use of technology and machinery prevalent in the company. Our professional are well versed with the latest design and manufacturing technology to ensure the production of high quality products that can be trusted for optimum performance.
1.The embryo inserting system has multiple safety protection devices to ensure the embryo inserting.
2.Use continuous embryo implantation system.
3.The device for conveying the preform to the heating extension blowing molding adopts a linear structure.
4.All-electric linkage structure ensures high-speed operation and precise positioning of the machine
5.Modular design, easy maintenance
6.Save cost and increase competitiveness.
7.Improve energy efficiency
8.Human-machine interface control, simple operation
9.Equipped with gas recovery device
10.Low energy consumption, low maintenance, low wear, low pollution.
| Automatic PET Stretch Bottle Blowing Machine | ||||||
| Models | HZM-ECO-2 | HZM-ECO4S | HZM-ECO4L | HZM-ECO6S | HZM-ECO6L | |
| Theoretical Capacity(BPH) | 1800-2400 | 4600-5000 | 3600-4500 | 6000-7000 | 5000-6000 | |
| Mold Cavities | 2 | 4 | 4 | 6 | 6 | |
| Bottles | Neck Size | 18-38mm | 18-38mm | 18-38mm | 18-38mm | 18-38mm |
| Max.Volume | 2000ml | 750ml | 2000ml | 750ml | 2000ml | |
| Max.Diameter | 105mm | 69mm | 105mm | 69mm | 105mm | |
| Max.Height | 330mm | 240mm | 330mm | 240mm | 330mm | |
| Power | Heater Qty | 16pcs | 21pcs | 32pcs | 28pcs | 48pcs |
| Heating Area | 2 | 3 | 4 | 4 | 6 | |
| Heating Power | 35KW | 46KW | 70KW | 62KW | 106KW | |
| Rated General Power | 37KW | 50KW | 75KW | 65KW | 110KW | |
| High Pressure Air Consumption(m³/min) | 2 | 3 | 4 | 5 | 5 | |
| Main Machine Size(mm) | 3000*1800*2400 | 3300*2000*2200 | 4200*2100*2400 | 4200*2050*2400 | 5800*2150*2400 | |
| Main Machine Weight(kg) | 2500 | 3600 | 5000 | 5500 | 7500 | |
Please provide the bottle drawing, volume, neck finish, preform specification, bottle weight, resin, required output and available high-pressure air conditions. These details determine the mold, heating, blowing and auxiliary-equipment configuration. The current product specification references 2000–24000 BPH; final guaranteed output is confirmed against the approved operating conditions.
Bottle geometry, volume, preform weight, material distribution, cavity count, heating time and compressed-air capacity all affect stable output. The committed performance is confirmed after reviewing the approved bottle and preform.
Often yes within an engineered range, using suitable molds and change parts. Each bottle and preform combination must be checked because neck finish, heating profile, stretch ratio and air demand can differ.
Yes. HZM can coordinate upstream processing or bottle making with filling, labeling, coding, packaging, conveying and palletizing. Layout, utilities, controls, factory testing, installation, commissioning and training are defined by the agreed project scope.
Talk to an engineer
Send your capacity, bottle specification and beverage type for a complete proposal.
