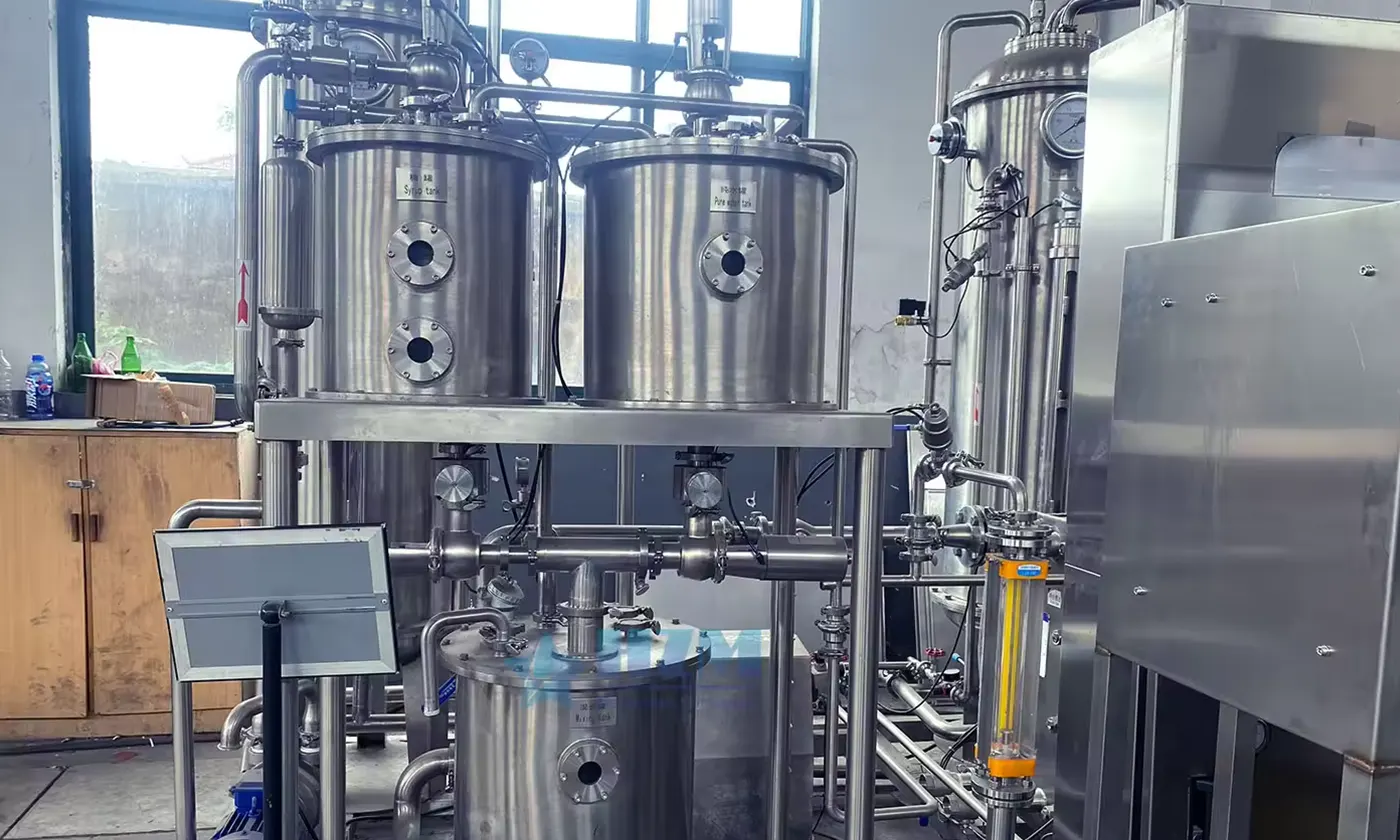

Carbonated beverage mixing machine structure reasonable, the mix precision is high, CO2 mixes fully, has two times of cooling, two carbonation merits. Mainly is suitable for kinds of carbonic acid drink's mix processing, also may use in the paste drink, the fermentation drink and so on other soft drinks' mix processing.
Drink CO2mixer is designed and made for improving the proportion of water, syrup and carbonated dioxide. It adopts advanced technology-static mixer to lighten water layer, increase carbonizing time, ensure mixing efficiency. Adopt carbon dioxide back flow deoxygenation, which can save carbon dioxide and deoxidize. High quality water pump and SEIMENS electrical equipment and other parts make up a complete automatic control system. It has coordinating action, beautiful appearance, convenient washing,high automatic level and other advantages. It is suitable for mixing all kinds of bottle, such as soda water, fruit juice, cola and other soft and hard drinks.
|
Model
|
DXGF24-24-8
|
DXGF32-32-8
|
DXGF40-40-10
|
DXGF50-50-12
|
DXGF60-60-15
|
|
Capacity
(for 500ml)
|
8,000BPH
|
12,000BPH
|
15,000BPH
|
18,000BPH
|
21,000BPH
|
|
Bottle diameter
|
50～110mm
|
||||
|
Bottle height
|
160～310mm
|
||||
|
Air source pressure
|
0.7MPa
|
||||
|
Main motor
power
|
3.0KW
|
4.0KW
|
7.5KW
|
7.5KW
|
11KW
|
|
Dimension
|
2800*2230*2700
|
3550*2650*2700
|
4360*3300*2700
|
4720*3545*2700
|
5770*5288*2700
|
1.Automatic with Alarm:The pressure in all tank and the liquid level of the machine are all controlled automatically with PLC.Once a error occurs,the alarm lamp will light and the alarm ring will sound and the mixer will stop automatically.
2.Easy operation and regulation:The operation of the mixer is especially convenient.Only turn around the buttons according to the pre-set program,the normal operation can be carried out.The production capacity,water-sugar proportion and gas content can be adjusted without exchanging and parts.
3.Even mixing and accurate proportion:One time mixing process is adopted,so the mixture is even.The mixing proportion of water and sugar is strictly controlled with measuring needle valve with fine regulation.Its precision can reach about 5%.
4.Enough gas content:The mixer adopts vacuum desoxidation technology at normal temperature.Its desoxidation ratio reaches above 90%.It has a baffle heat exchanger to cool the sugar-water mixture and carry out twice carbonating,So its carbon content is especially high.
Please provide the beverage recipe, process flow, inlet and outlet conditions, required throughput, cleaning requirements, utilities and plant layout. HZM uses these inputs to define tanks, heat treatment, mixing, piping and controls. The intended application is carbonated soft drinks, soda water and other sparkling beverages.
Product composition, viscosity, temperature, treatment time, hygiene target and downstream filling conditions determine the equipment and control strategy. The final process must be confirmed against the approved recipe and product standard.
Multiple recipes may be supported through suitable tanks, controls and cleaning procedures. Ingredients, thermal sensitivity, allergens, particles and required changeover cleaning must be reviewed for each product.
Yes. HZM can coordinate upstream processing or bottle making with filling, labeling, coding, packaging, conveying and palletizing. Layout, utilities, controls, factory testing, installation, commissioning and training are defined by the agreed project scope.
