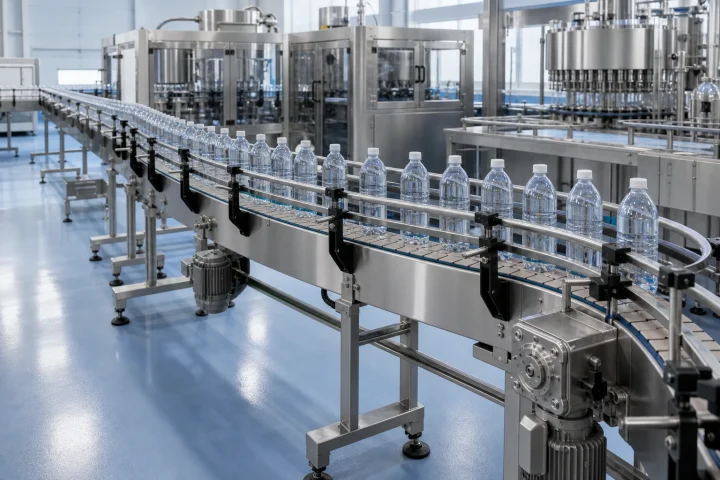

Conveyor Belt System For PET Bottle And GLASS Bottle

Application: transfer of bottles, containers or finished packs between line machines.
Product / layout: Container or pack dimensions, route, elevation and connected-machine speeds.
Capacity: Selected according to the required sustained output and connected equipment.
Line interface: Route, elevation, accumulation and speed coordinated with connected machines.
Project scope: Standalone equipment or integration into a complete production line, based on the confirmed quotation.

Categories: Packs, Bottle Conveyors Machine, Products

Tip: You can request pricing for individual machines or a complete production line solution.

Factory-direct equipment and customization
Complete layout and utility planning
Installation, commissioning and training
24-month after-sales support

Brief Introduction

Conveying line is mainly to complete its material conveying task. In the warehouse, production workshop and packaging workshop around the site, set up by many belt conveyor, roller conveyor and other components of a conveyor chain, connected by the end to form a continuous conveyor line. The entrance and exit of materials are provided with a path fork device, lift and ground conveyor line. Thus in the warehouse, production workshop and packaging workshop within the scope of the formation of a smooth to each production position at the same time is closed circulation conveyor line system.

Product Features

Application Range	Plastic Bottles, Glass Bottles
Size	Customized
Applicable for	Mineral Water, Juice, Carbonated Drink Filling,Cosmetics, Pharmaceuticals, Edible Oil Production Line

AIR CONVEYOR

Air conveyor is a bridge between blowing machine and 3 in 1 filling machine. Air conveyor is supported by the arm on the ground; the air blower is settled on the air conveyor. Each inlet of air conveyor has an air filter to prevent dust coming into. The bottle is transferred to 3 in 1 machine through wind.

Main character
1. The main structure is made bySUS304.
2. Air blower is settled with air filter to prevent dust coming into the bottle.
3. There is an adjustable joint settled in air conveyor to meetdifferent bottle
4. There is a block bottle clear device driven by cylinder. When bottle block in the inlet, it clear the bottle automatical.

Frequently Asked Questions

What information is needed to configure the Conveyor Belt System For PET Bottle And GLASS Bottle?

Please provide container or pack drawings, connected-machine speeds, factory layout, route length, elevation changes and accumulation requirements. HZM uses these data to size the conveyor, drives, guides and control zones.

How are conveyor speed and accumulation determined?

The design is based on the sustained output and operating behavior of upstream and downstream equipment. Appropriate accumulation helps absorb short stops without creating excessive pressure or unstable container flow.

Can the conveyor handle different bottle or pack formats?

A confirmed range can be supported with adjustable guides, suitable belt or air-rail design and changeover settings. Every format still needs review for stability, dimensions and transfer-point behavior.

Can this equipment be integrated into a complete production line?

Yes. HZM can coordinate upstream processing or bottle making with filling, labeling, coding, packaging, conveying and palletizing. Layout, utilities, controls, factory testing, installation, commissioning and training are defined by the agreed project scope.
