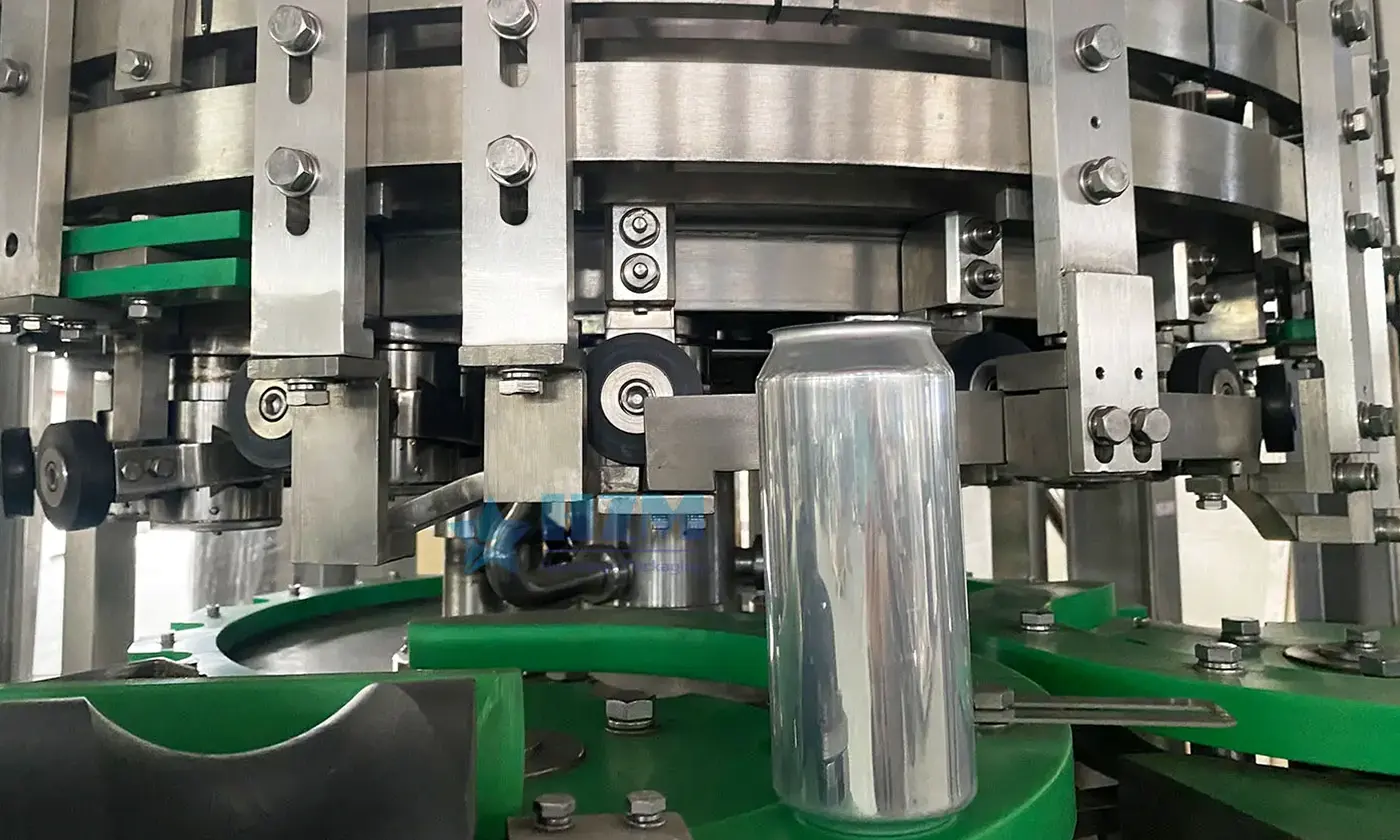

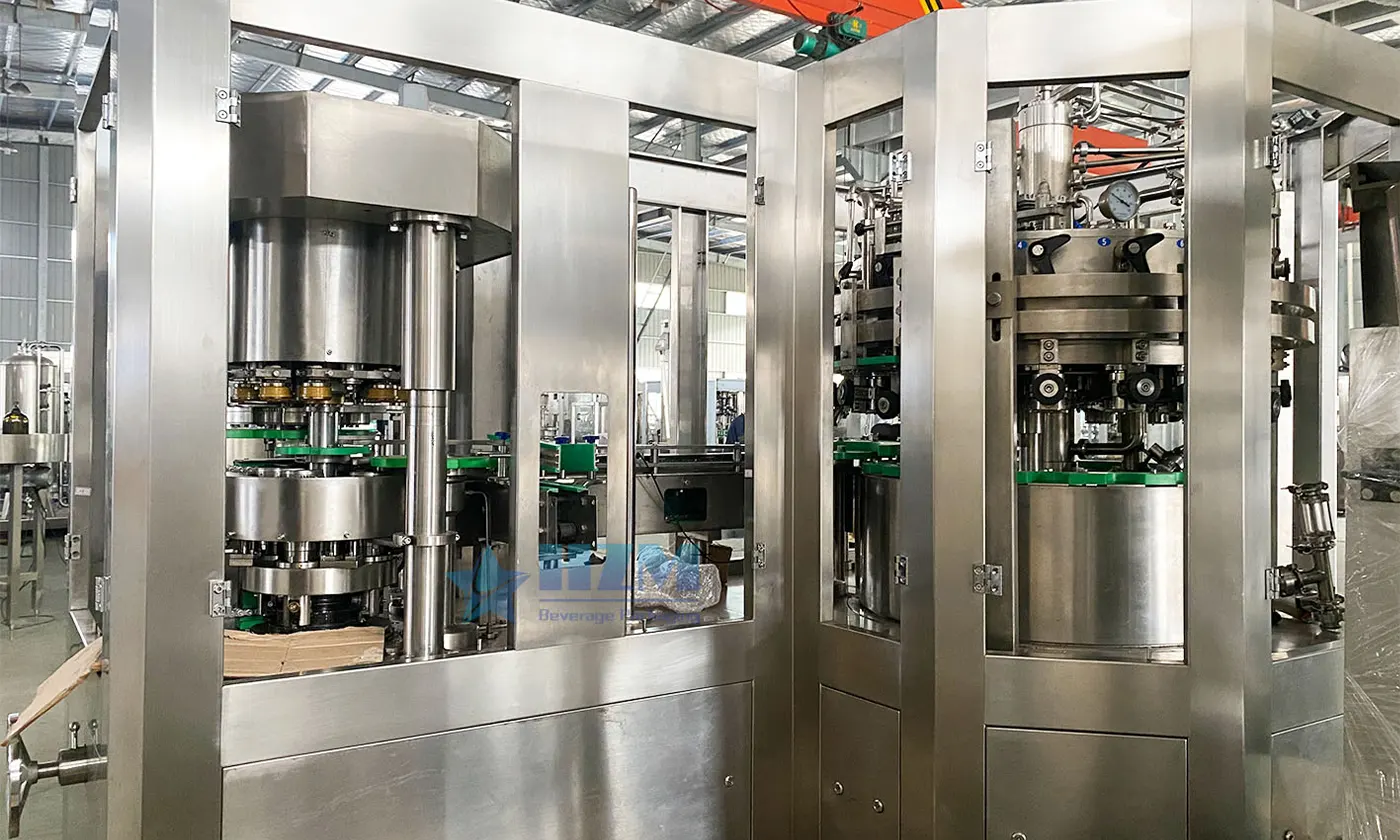

An aluminum can filling machine is a piece of equipment used to fill aluminum cans with various liquid products, such as beverages, like soft drinks, beer, or fruit juices. These machines are commonly used in beverage production facilities, including breweries, soft drink manufacturers, and fruit juice processors.
We are a comprehensive professional supplier of liquid beverage packaging machineryintegrating development, manufacturing and sales. We can provide turnkey projects and have professional after-sales service engineers. Currently, the equipment is exported to more than 30 regions and countries in domestic and foreign markets. Welcome more friends to come for negotiation and consultation.

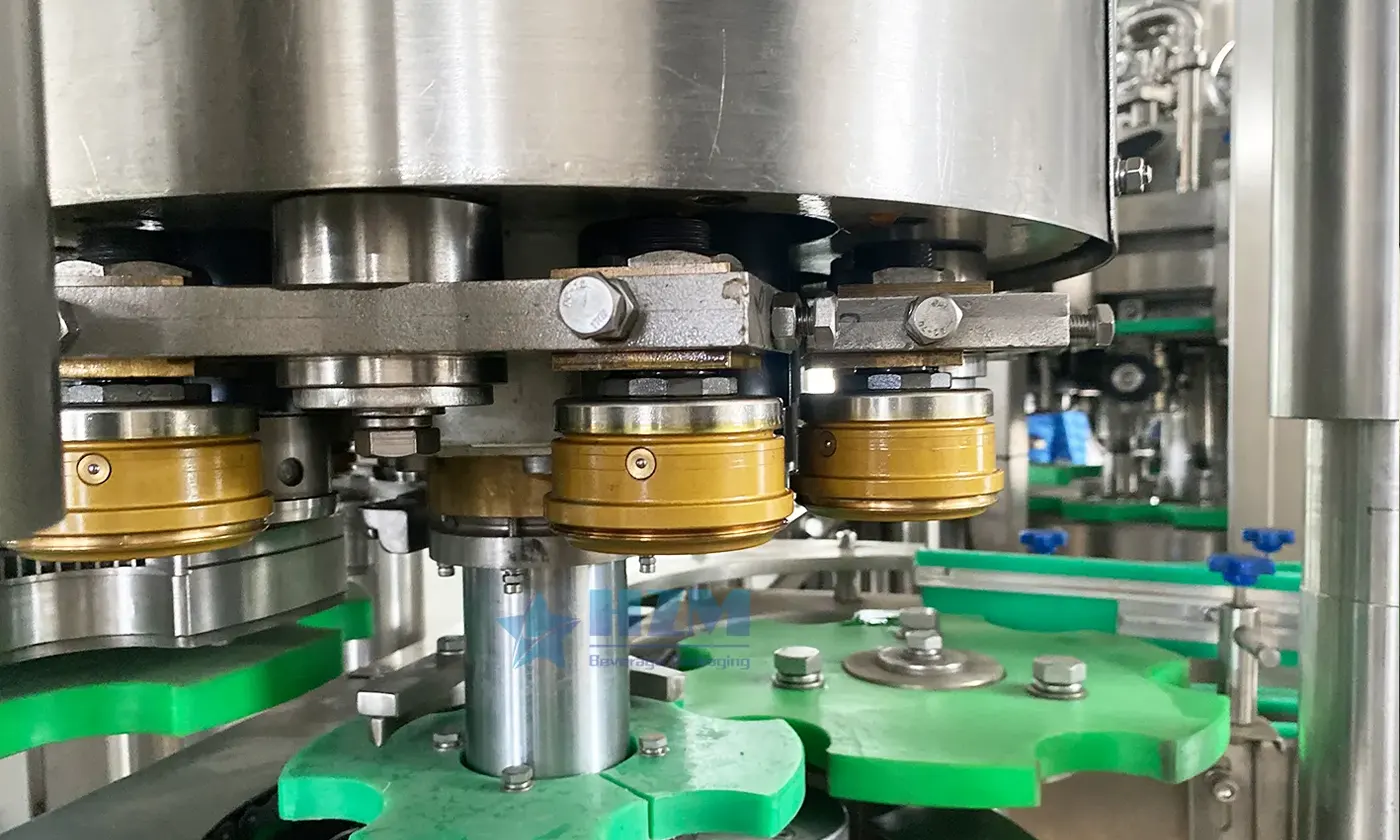

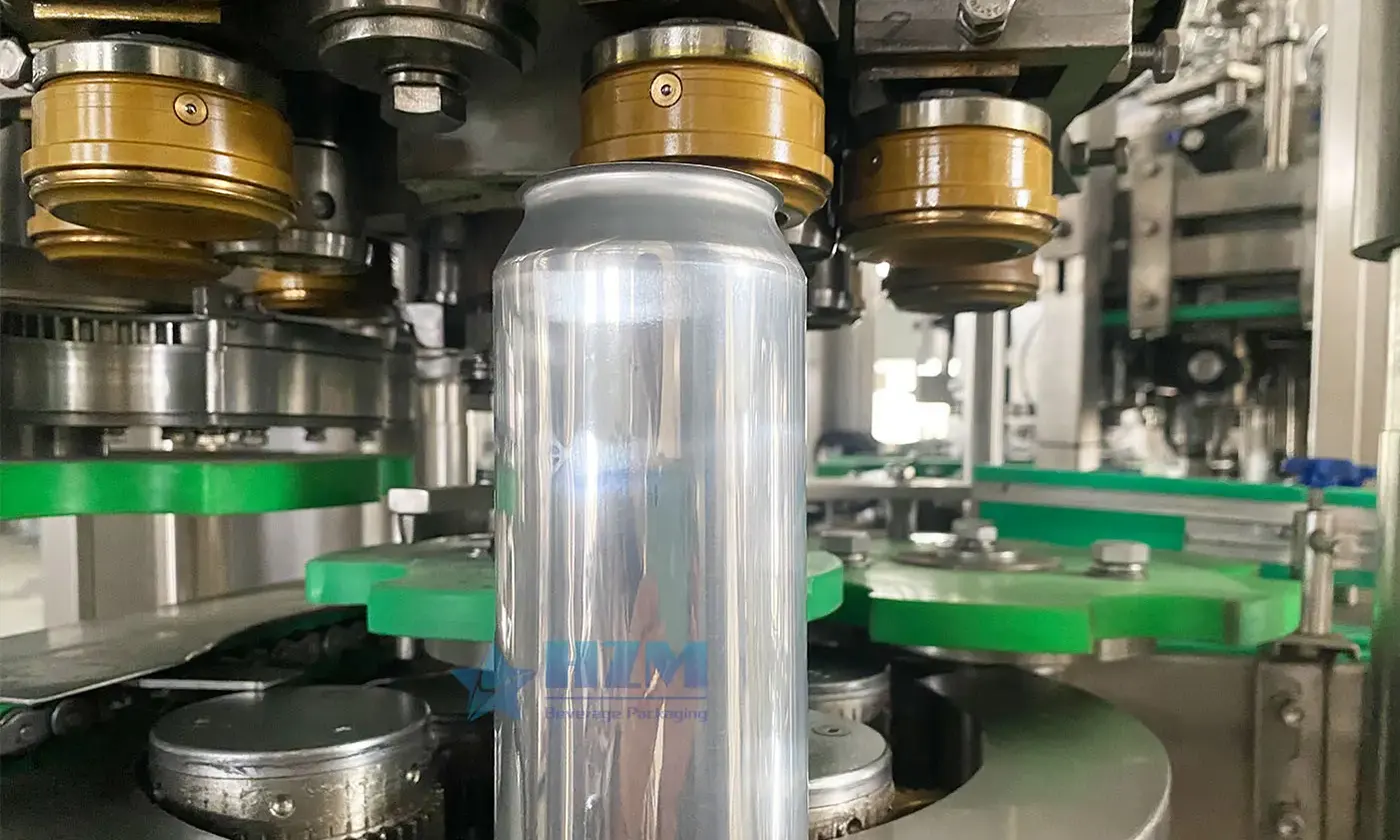

1.Automatic Aluminum Can Filling Machinee adopts electronic filling valve with high-precision flow meter and isobaric filling; the filling valve has the function to exhaust air with carbon dioxide. Low amount of oxygen is produced during the filling operation.
2.All the procedures during the filling process include: air exchange, carbon dioxide back pressure, filling and pressure relief which are all under PLC automatic control.
3.All filling valve sealings are made of bellows or rubber diaphragm. There is no dead corners, which has ensured internal filling valve is sterile. The filling valve is equipped with automatic CIP cleaning cup.
4.The filling machine controls the infeeding and stopping of the cans according to the accumulation of the cans upstream and downstream automatically.
5.The frame platform is of sanitary design. Round tube type filling bowl has no cleaning dead corner. Sanitary valve matrix is adopted for media connection.
Filling Heads:
| Component Description | Material/Brand |
|---|---|
| Material of filling valve | Stainless steel SUS316L |
| Material of rotary tray and machine platform of rinser and filler | Stainless steel SUS304 |
| Main motor | ABB (Switzerland)/ SEW (Germany) |
| Sliding bearing | Igus (Germany) |
Sealing Heads:
| Component Description | Material/Brand |
|---|---|
| Frequency inverter | MITSUBISHI (Japan) |
| Pneumatic components | CAMOZZI (Italy) |
| Seals | Busak+Shamban (U.S.A)/ SEALTECH (HK) |
| Photocell switch | Omron, Keyence, P+F (Japan/Germany) |
| Proximity switch | TURCK (Germany) |
| Model | Filling
Heads |
Seaming
Heads |
Capacity
(Based on 330ml) |
Filling Level Accuracy
(mm) |
Dimension
(mm) |
Power
(KW) |
| CGS9/2 | 9 | 2 | 6000 | ±2 | 2855*1780*2350 | 5.0 |
| CGS20/4 | 20 | 4 | 12000 | ±2 | 3153*1980*2350 | 5.0 |
| CGS30/6 | 30 | 6 | 18000 | ±2 | 4800*2600*2350 | 7.2 |
| CGS40/8 | 40 | 8 | 24000 | ±2 | 6500*2600*2350 | 11.0 |
| CGS60/8 | 60 | 8 | 36000 | ±2 | 6500*2600*2350 | 11.0 |
Please provide the product recipe or liquid characteristics, container and closure drawings or samples, required sustained output, utilities and factory layout. HZM uses these details to confirm the filling method, machine model and line interfaces. The intended application is carbonated Beverage, Beer, COLA, Gas Water. The current product specification references 4000~36000 Bottles Per Hour; final guaranteed output is confirmed against the approved operating conditions.
The filling method depends on viscosity, carbonation, temperature, particles, foaming behavior, hygiene requirement, container and closure. HZM confirms the process only after reviewing the actual product and package.
A defined format range can often be supported with recipes and change parts. Compatibility is confirmed from approved drawings or samples because container diameter, height, neck finish, closure and handling stability affect changeover scope.
Yes. HZM can coordinate upstream processing or bottle making with filling, labeling, coding, packaging, conveying and palletizing. Layout, utilities, controls, factory testing, installation, commissioning and training are defined by the agreed project scope.
