Monoblock 8000 BPH- 54000 BPH Washing Filling Capping Machine
| Model: | DGY10 | Type: | Filling Machine |
|---|---|---|---|
| Function: | Bottle Washing Filling Capping | Material: | Stainless Steel |
| Filling Valve: | Gravity Mechanical Valve Or Customer Needs | Capacity: | 16000 BPH |
| Number Of Bottle Rinsing Clip: | 32 | Number Of Filling Valve: | 32 |
| Number Of Capping Head: | 10 | Dimensions: | 3300x3000x2700 Mm |
| Bottle Diameter: | Φ60-Φ96 Mm | Bottle Height: | 180-315 Mm |
| Bottle Volume: | 350-1500 Ml | Certification: | CE, GB/T19001-2000 |
| High Light: | 8000 bpm Washing Filling Capping Machine, 54000 Bpm Washing Filling Capping Machine, 54000Bpm monoblock filling and capping machine | ||

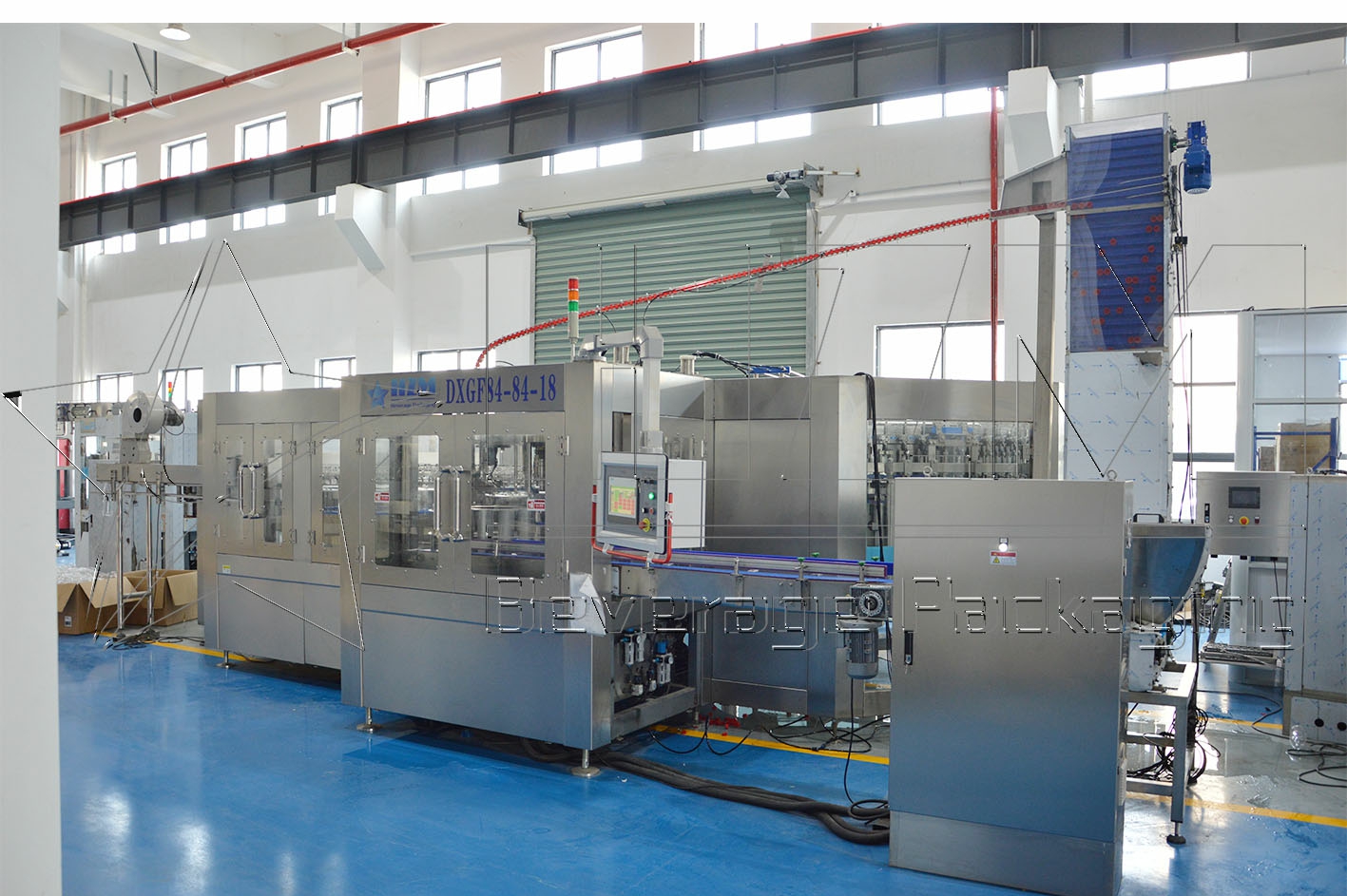

Monoblock 8000 BPH- 54000 BPH Washing Filling Capping Machine
Automatic Mineral Water Filling Machine 3 In 1 Monoblock Water Bottling Machine
Our bottled water filling machine is an automatic liquid packaging machine that combines a bottle washing machine, a filling machine and a capping machine. To help our customers better understand our products, we provide you with some information about how the bottled water filling machine works. An air conveyor first conveys empty bottles to the rinsing machine orderly, then the bottles are turned over and washed inside by the nozzles. After dripping, the bottle are fed into the filling machine automatically for filling liquid at high speed. At last, the capping machine is used for safe and reliable capping of these bottles.
Specifications
Capacity: A-15000 bottles/hour —-54000 bottles/hour (500ml)
Applicable bottle type 200ml-1500ml
Capacity: B-1500 bottles/hour—–8000 bottles/hour (5L)
Applicable bottle type 3L-10L
Filling valve: Gravity mechanical valve/imported flow meter valve is used according to customer needs
Specifications of Bottled Water Filling Machine
| Model | Number of Bottle Rinsing Clip | Number of Filling Valve | Number of Capping Head | Capacity (BPH) |
Bottle Size |
Dimensions (mm) | Weight (Kg) | Remark | ||
| Diameter (mm) | Height (mm) | Volume (ml) | ||||||||
|
DGY06 |
18 |
18 |
6 |
8000 |
Φ60-Φ96 |
180-315 |
350-1500 |
2480x1980x2600 |
4000 |
All-in-one Type |
|
DGY08 |
24 |
24 |
8 |
12000 |
Φ60-Φ96 |
180-315 |
350-1500 |
2800x2400x2600 |
6000 |
All-in-one Type |
|
DGY10 |
32 |
32 |
10 |
16000 |
Φ60-Φ96 |
180-315 |
350-1500 |
3300x3000x2700 25002500 3085 |
7200 |
All-in-one Type |
|
DGY12 |
40 |
40 |
12 |
20000 |
Φ60-Φ96 |
180-315 |
350-1500 |
3900x3180x2700 |
9000 |
All-in-one Type |
|
DGY15 |
50 |
50 |
15 |
24000 |
Φ60-Φ96 |
180-315 |
350-1500 |
5300x4200x2900 |
10000 |
All-in-one Type |
|
DGY15 |
60 |
60 |
15 |
28000 |
Φ60-Φ96 |
180-315 |
350-1500 |
5700x4600x2900 |
12000 |
All-in-one Type |
|
DGY18 |
72 |
72 |
18 |
32000 |
Φ60-Φ96 |
180-315 |
350-1500 |
6600x5100x2900 |
15000 |
All-in-one Type |
About HZM
HZM Packaging Machinery Co., Ltd. is an experienced beverage production line manufacturer, headquartered in City, China. We produce various water production lines, juice production lines, tea beverage production lines and so on. Our products are used to package water, fruit juice, tea drinks, milk drinks, cereal juice, soda water, protein drinks, energy drinks, etc.
