Carbonated Drink Filling Line Guide: CO2 Control, Isobaric Filling and Foam Reduction

A reliable carbonated drink filling line project starts with verified application data, not a model code or an unsupported certificate list. This guide focuses on co2 control, isobaric filling and foam reduction and shows what a buyer should define before HZM Machinery confirms the process, equipment scope and acceptance conditions.

Define the application before equipment selection

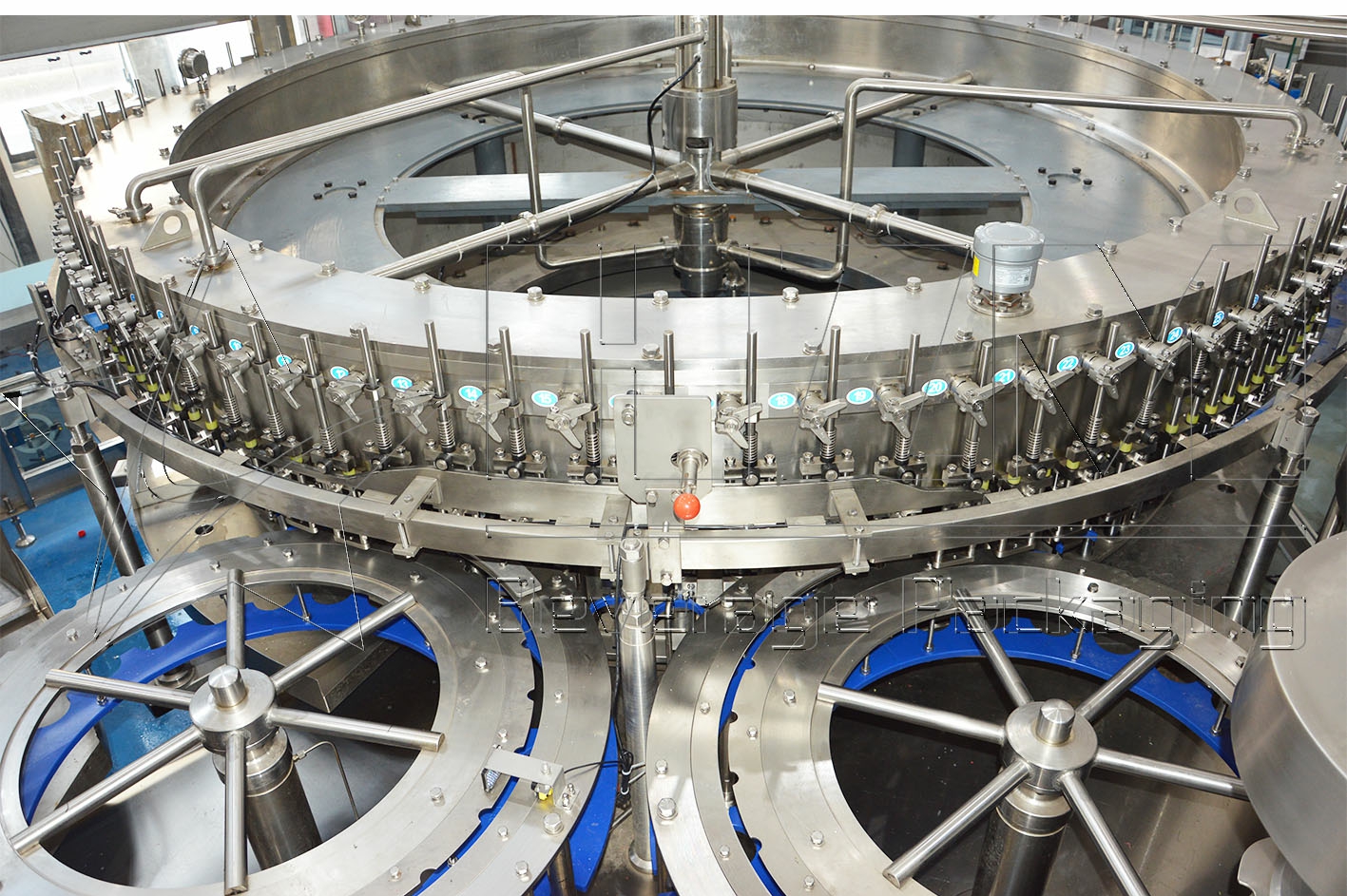

An isobaric beverage line where carbonation, product temperature, pressure control, closure quality and stable container handling must be designed together. The final configuration depends on the customer product, packaging samples, factory conditions and required automation. HZM therefore reviews the following inputs before issuing a technical proposal.

• Drink recipe and target CO2 volume
• Container and closure drawings
• CO2 mixer or process-system scope
• Utility conditions and room layout
• Drink recipe and target CO2 volume

CO2 Control, Isobaric Filling and Foam Reduction

Tie the engineering decision to product data, physical samples and an agreed acceptance method. HZM reviews these inputs before confirming the final process route, machine configuration and interfaces.

The specification should state who supplies each interface, how the line will respond to short stops, and which readings must be available to operators. This avoids gaps between process equipment, the main machine, conveyors and packaging, especially when several suppliers are involved.

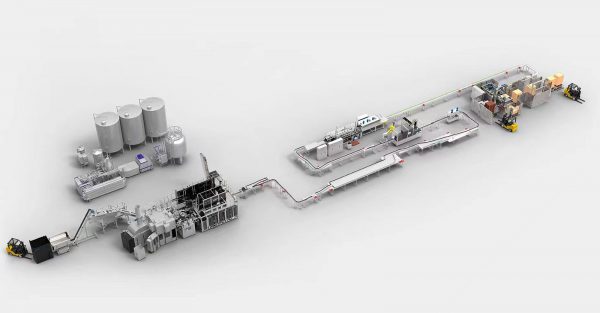

Place the machine inside a complete production line

For equipment-level information, review Carbonated Soft Drink Filling Machine. The CSD Filling Production Line page shows the wider line sequence, while 12,000 BPH Carbonated Drink Production Line Installation in Eastern Europe provides context from an actual HZM project. These references help define scope, but the quotation must still be based on the buyer’s current samples and user requirement specification.

RFQ and acceptance checklist

1. Send current product data, container and closure drawings, plus representative samples when available.
2. State net saleable output for every SKU and define the efficiency formula used to convert rated speed into accepted production.
3. Mark the supply boundary for process equipment, utilities, inspection, conveyors, packaging, coding and pallet handling.
4. Agree the FAT material quantity, test duration, sampling plan, reject definitions and documented results before manufacturing is complete.
5. Confirm installation responsibilities, operator and maintenance training, spare parts, manuals and after-sales communication.

Frequently asked questions

What information is required for a reliable quotation?

At minimum, provide product properties, package drawings, closure details, net output, factory layout, utilities and the desired line boundary. Physical samples are strongly recommended before change parts or handling components are finalized.

Is catalog speed the same as daily production?

No. Daily output also depends on changeovers, cleaning, upstream supply, downstream stops, rejects and operator practices. The proposal should distinguish rated speed, test speed and the efficiency target used for line acceptance.

Can one system handle several products or container sizes?

Often yes, but the range must be reviewed. Product risk, filling method, cleaning needs, container geometry and closure type determine whether change parts, additional circuits or separate equipment are required.
