Blow-Fill-Cap Combi Block Guide: Factory Layout and Maintenance Access

A reliable blow-fill-cap combi block project starts with verified application data, not a model code or an unsupported certificate list. This guide focuses on factory layout and maintenance access and shows what a buyer should define before HZM Machinery confirms the process, equipment scope and acceptance conditions.

Define the application before equipment selection

An integrated PET line that balances preform heating, bottle blowing, hygienic neck transfer, filling and capping in one coordinated system. The final configuration depends on the customer product, packaging samples, factory conditions and required automation. HZM therefore reviews the following inputs before issuing a technical proposal.

• FAT samples and acceptance method
• Bottle weight and top-load target
• Required net bottle output
• High- and low-pressure air data
• FAT samples and acceptance method

Factory Layout and Maintenance Access

Record utilities at the machine boundary instead of relying on a single installed-power figure. Average and peak demand, pressure, temperature, air quality, drainage, ventilation, maintenance clearances and cable routes all affect the final factory layout and operating cost.

The specification should state who supplies each interface, how the line will respond to short stops, and which readings must be available to operators. This avoids gaps between process equipment, the main machine, conveyors and packaging, especially when several suppliers are involved.

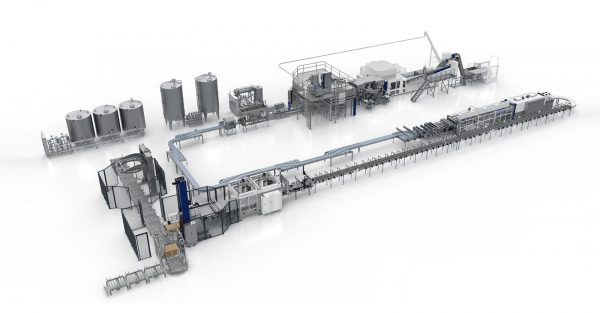

Place the machine inside a complete production line

For equipment-level information, review Automatic PET Bottle Blowing Filling Capping Machine. The Water Filling Production Line page shows the wider line sequence, while 36,000 BPH Pure Water Bottling Line for Gold Water Ethiopia provides context from an actual HZM project. These references help define scope, but the quotation must still be based on the buyer’s current samples and user requirement specification.

RFQ and acceptance checklist

1. Send current product data, container and closure drawings, plus representative samples when available.
2. State net saleable output for every SKU and define the efficiency formula used to convert rated speed into accepted production.
3. Mark the supply boundary for process equipment, utilities, inspection, conveyors, packaging, coding and pallet handling.
4. Agree the FAT material quantity, test duration, sampling plan, reject definitions and documented results before manufacturing is complete.
5. Confirm installation responsibilities, operator and maintenance training, spare parts, manuals and after-sales communication.

Frequently asked questions

What information is required for a reliable quotation?

At minimum, provide product properties, package drawings, closure details, net output, factory layout, utilities and the desired line boundary. Physical samples are strongly recommended before change parts or handling components are finalized.

Is catalog speed the same as daily production?

No. Daily output also depends on changeovers, cleaning, upstream supply, downstream stops, rejects and operator practices. The proposal should distinguish rated speed, test speed and the efficiency target used for line acceptance.

Can one system handle several products or container sizes?

Often yes, but the range must be reviewed. Product risk, filling method, cleaning needs, container geometry and closure type determine whether change parts, additional circuits or separate equipment are required.
