Integrated 500ml Blowing Filling Capping Combine

release time
Update:Jun, 12 /2023

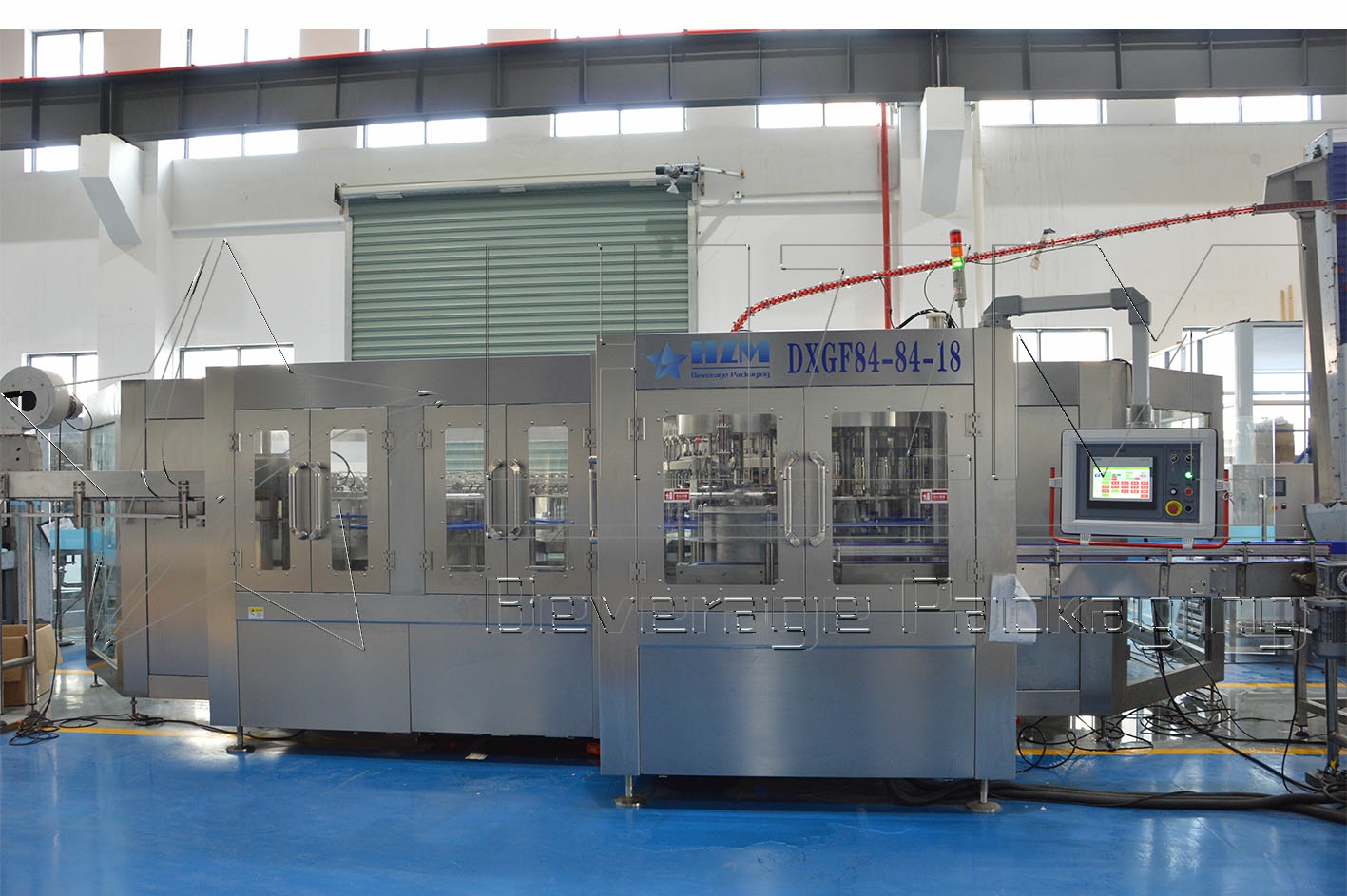

Integrated 500ml Blowing Filling Capping Combine

Material: Stainless Steel Certification: GB/T19001-2000
Type: Filling Machine Filling Valve: Gravity Mechanical Valve Or Customer Needs
Capacity: 15000-54000BPH Applicable Bottle Type: 200ml-1500ml
Application: Pure Water, Mineral Water, Mountain Spring Water Function: Water Bottle Filling Machine
Number Of Bottle Feed Cavity: 12 Number Of Filling Head: 40
Number Of Capping Head: 12 Productivity: 24,000 BPH (500ml)
Applicable Bottle: Dia.: Φ60-Φ90, Height: 180-260 Overall Dimension: 13,100×7,780×3,840 (L×W×H)
Main Motor Power: 5.5+7.5kW Weight: 25,000kg
High Light: 500ml Blowing Filling Capping Combine, Contactless milk bottle capping machine, Integrated Blowing Filling Capping Combi

Integrated 500ml Contactless Blowing Filling Capping Combine


Pressure Filling System Non - Contact Blowing Filling Capping Combine

Integrated Blowing Filling Capping System

The integrated blowing cap system is a new generation beverage production line developed by our company. It integrates the functions of PET bottle blowing machine, liquid filling machine and capping machine. The beverage machine effectively saves production processes such as intermediate material transfer, empty bottle handling, and storage.

Technical Parameters of Integrated Blowing Filling Capping System

Number of Bottle Feed Cavity


Number of Filling Head


Number of Capping Head



24,000 BPH (500ml)

Applicable Bottle

Dia.: Φ60-Φ90, height: 180-260

Overall Dimension

13,100×7,780×3,840 (L×W×H)

Main Motor Power





1. The production capacity is based on bottles of 500ml. The actual capacity may be affected by the size and shape of customers' bottles.
2. BestCrown reserves the right to change these data according to the specific conditions.

Technical features:

Imported ion dust removal system to ensure the safety of packaging.
Customers can customize imported AROL capping system.
Customer-customized full servo stretching system to meet various stretch ratios.
Complete and fully automatic CIP system to ensure the sanitary requirements of the inner surface of the equipment.
Adopt PROFIBUS intelligent control technology to realize whole line control and intelligent data report, each Real-time monitoring of links.


HZM Packing Machinery Co., Ltd. is a comprehensive liquid beverage packaging solution provider specializing in design, manufacturing, sales and service. It has been deeply involved in the packaging machinery industry for nearly 10 years. Its service areas are widely used in beverages , dairy products, and condiments. It is one of the manufacturers with the highest level of technology and the most complete varieties of equipment for the production of liquid beverages in many packaging industries in China, such as alcohol, daily chemicals.


1. Our beverage machinery is approved as qualified products for seven years by Chinese beverage industry association.
2. Our company is approved as excellent supplier of filling equipment four times by Chinese beverage industry association.
3. Our company is entitled "Star Enterprise" by Chinese food and packaging machinery industry association.
4. Our company is approved as the enterprise technical center of Zhangjiagang Province.
5. Our company obtains ISO9001:2000 International Quality Management System Certification.
6. Our company is awarded as demonstration enterprise of national CAD application engineering by Ministry of Science and Technology of China.
7. All our products are awarded as CE certification.
8. Our company becomes the vice chairman of Chinese food and packaging machinery industry association.

TAG:  500ml Blowing Filling Capping Combine  Blowing Filling Capping Combine  Contactless milk bottle capping machine  Integrated Blowing Filling Capping Combi
