Stainless Steel 12000 BPH 500ml Bottled Water Filling Machines

Stainless Steel 12000 BPH 500ml Bottled Water Filling Machines

Material: Stainless Steel Process: Pressure Filling System
Certification: CE, GB/T19001-2000 Type: Filling Machine / Water Bottling Equipment
Filling Valve: Gravity Mechanical Valve Or Customer Needs Capacity: 12000 Bph
Bottle Diameter: Φ60-Φ96 Mm Bottle Height: 180-315 Mm
Bottle Volume: 350-1500 Ml Dimensions: 2800x2400x2600 Mm
Weight: 6000 Kg Function: Bottle Washing Filling Capping
High Light: 1500ml Bottled Water Filling Machines, 12000 bph Bottled Water Filling Machines, 12000 bph water bottling equipment

Stainless Steel 12000 Bph 500ml Bottled Water Filling Machines

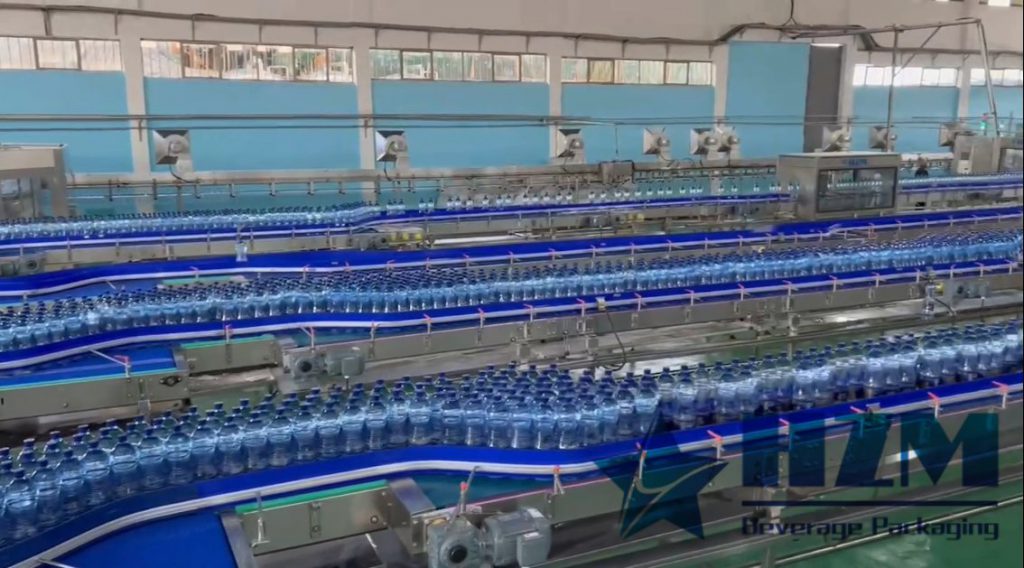

This production line is suitable for packaging production of soft drinks such as PET bottled mineral water and purified water. The core equipment is a three-in-one unit for bottle washing, filling and capping.

Capacity: A-15000 bottles/hour ----54000 bottles/hour (500ml)
Applicable bottle type 200ml-1500ml
Capacity: B-1500 bottles/hour-----8000 bottles/hour (5L)
Applicable bottle type 3L-10L
Filling valve: Gravity mechanical valve/imported flow meter valve is used according to customer needs

Specifications of Bottled Water Filling Machine

Model Number of Bottle Rinsing Clip Number of Filling Valve Number of Capping Head Capacity (BPH)

Bottle Size

Dimensions (mm) Weight (Kg) Remark
Diameter (mm) Height (mm) Volume (ml)
DGY06 18 18 6 8000 Φ60-Φ96 180-315 350-1500 2480x1980x2600 4000 All-in-one Type
DGY08 24 24 8 12000 Φ60-Φ96 180-315 350-1500 2800x2400x2600 6000 All-in-one Type
DGY10 32 32 10 16000 Φ60-Φ96 180-315 350-1500 3300x3000x2700 25002500 3085 7200 All-in-one Type
DGY12 40 40 12 20000 Φ60-Φ96 180-315 350-1500 3900x3180x2700 9000 All-in-one Type
DGY15 50 50 15 24000 Φ60-Φ96 180-315 350-1500 5300x4200x2900 10000 All-in-one Type
DGY15 60 60 15 28000 Φ60-Φ96 180-315 350-1500 5700x4600x2900 12000 All-in-one Type
DGY18 72 72 18 32000 Φ60-Φ96 180-315 350-1500 6600x5100x2900 15000 All-in-one Type

Features

1. All parts in contact with liquid are manufactured by quality stainless steel, for example, the filling valves are made of stainless steel 316.
2. The use of pressure type filling system helps ensure high filling speed, precision and quality.
3. Bottles are fed by air conveyor, transported by clapping the bottle neck and put out through conveyor chain, which enable you so change bottle size easily.
4. Our bottled water filling machine uses advanced "PICK, PLACE" capping system with magnetic clutch capping head for reliable capping and convenient magnetic torque adjustment.
5. Due to the adoption of frequency conversion motor+PLC+MMI, the capacity, shift production and failure alarm could be displayed on the screen for ease of operation.
6. The bottled water filling machine is equipped with stainless steel shield and safeguard door which is made of organic glass and provided with safety electric switch. The machine will automatically stop when the door is opened. In addition, handle switch and scramming buttons are equipped at the four corners of the machine.
7. Rinsing clips are made of stainless steel so as to avoid bottle neck pollution.
8. A cap stopper is installed on the slide way to stop moving conversed caps. There are detectors on the cap magazine and slide way to detect the cap quantity and position for automatically controlling the speed of cap conveyor and the water filling machine. When there are no cap or few caps on the slide way, the machine will stop to alarm. "No bottle, no cap" is achieved.
9. There are detectors for bottle feeding condition and blocking condition. Hence, when there is no bottle to feed or the bottles are blocked, the machine will slow down and stop automatically.

As an experienced bottled water production line manufacturer and supplier in China, BestCrown is able to offer you bottled water production lines which can be used as pure water production lines and mineral water production lines. As our beverage production lines are reliable, efficient, low priced, and CE certified, they are very popular with customers from Mongolia, Malaysia, Russia, England, Canada, the USA, Mexico, among other countries. Apart from bottled water production lines, we also offer water filling machines, juice filling machines, tea drink production lines, etc. to suit various needs of our customers.

Please feel free to contact us for more information. We are certain you will be satisfied with high quality products.
